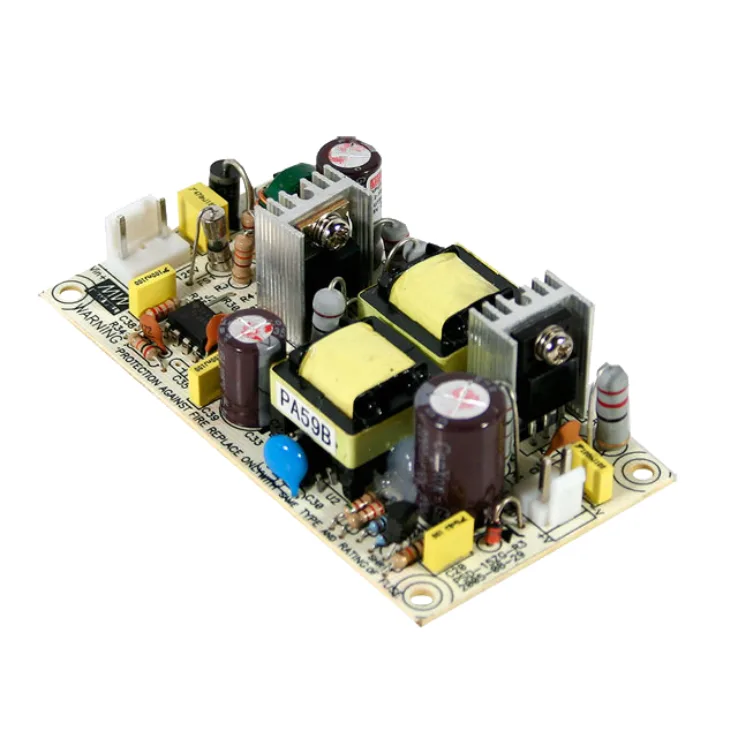

Mean Well PSD-15 Series DC-DC Power Supplies 15W

Download Datasheet
Models:
  • PSD-15A-5
  • PSD-15A-12
  • PSD-15A-24
  • PSD-15B-5
  • PSD-15B-12
  • PSD-15B-24
  • PSD-15C-5
  • PSD-15C-12
  • PSD-15C-24
Manufacturer: Mean Well
Type: DC-DC Power Supplies

PSD-15 Series Features:

2:1 wide input range

Protections: Short Circuit / Overload / Over voltage / Polarity

Other Features:

  • 2000VAC I/O isolation
  • Built in EMI filter, low ripple noise
  • 100% full load burn in test
  • Low cost, high reliability
  • 2 years warranty
Wattage 15 15 15 15 15 15 15 15 15
Input Voltage 9.2~18 9.2~18 9.2~18 18~36 18~36 18~36 36~72 36~72 36~72
Output Current 0~3.0 0~1.25 0~0.6 0~3.0 0~1.25 0~0.6 0~3.0 0~1.25 0~0.6
Output Voltage 5 12 24 5 12 24 5 12 24
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment N/A N/A N/A N/A N/A N/A N/A N/A N/A
Dimensions 94 x 49 x 25 94 x 49 x 25 94 x 49 x 25 94 x 49 x 25 94 x 49 x 25 94 x 49 x 25 94 x 49 x 25 94 x 49 x 25 94 x 49 x 25
Working Temperature -10~+60°C
Safety Standards Meet LVD
EMC Standards EN55022 class B, EN61000-4-2,3,4,6,8 EN55022 class B, EN61000-4-2,3,4,5,6,8
