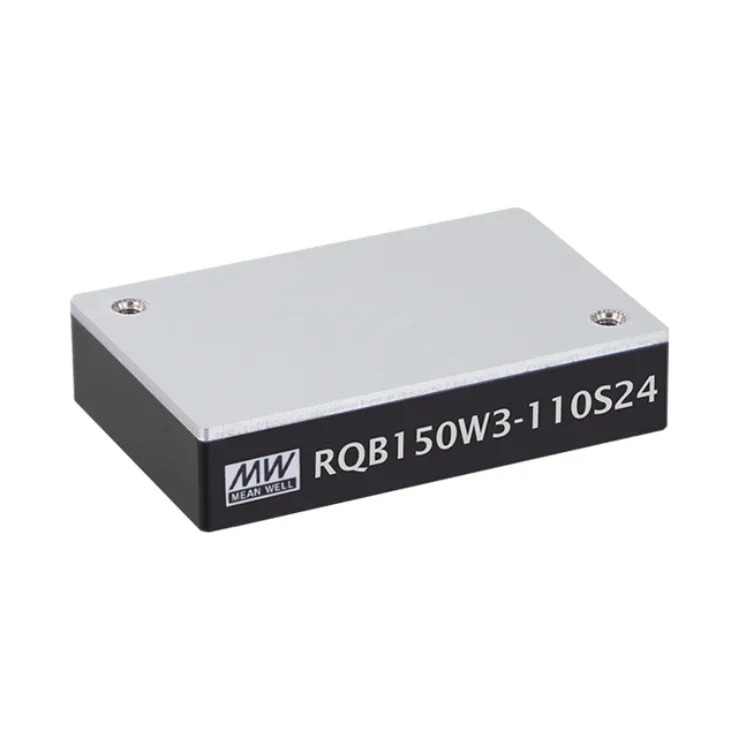

MEAN WELL RQB150W3 Series DC-DC Power Supplies 150W

RQB150W3 Series Features:

RQB150W3 series is a 150W module type DC-DC reliable railway with quarter brick package.

Features:

• Quarter brick (2.28"x1.45"x0.5") with industrial standard pin-out
• Compliance with railway standard EN50155
• 3:1 (60~160Vdc) ultra-wide input range
• Wide operating temperature range -40~90℃
• No minimum load required
• Full encapsulated
• Protections: Short circuit (continuous)/Overload/Over temperature/Over voltage/Input under voltage
• 3KVAC I/O isolation
• Remote ON/OFF control and remote sense
• Trimming output (±10%)
• 3 years warranty
