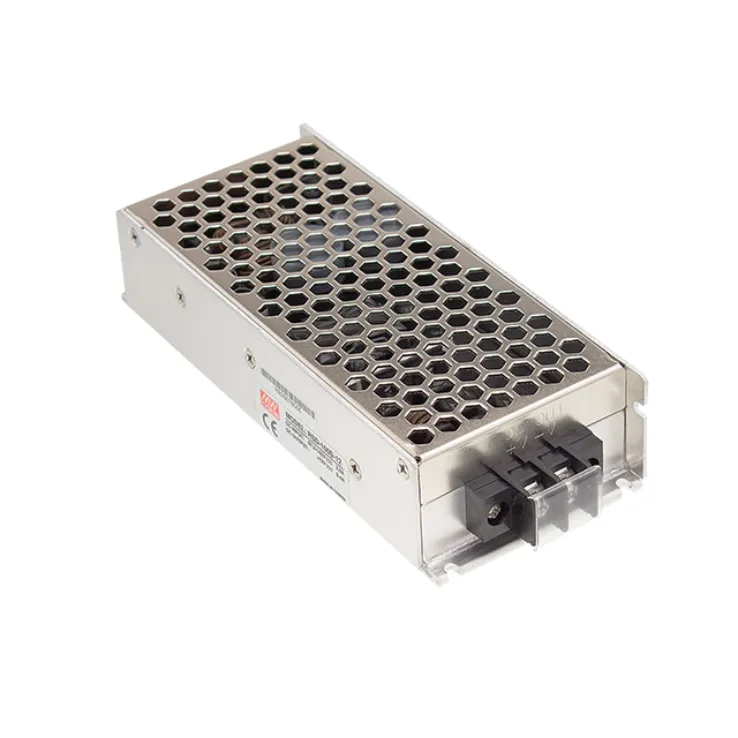

Mean Well RSD-100 Series DC-DC Power Supplies 100W

Download Datasheet
Models:
  • RSD-100B-5
  • RSD-100B-12
  • RSD-100B-24
  • RSD-100C-5
  • RSD-100C-12
  • RSD-100C-24
  • RSD-100D-5
  • RSD-100D-12
  • RSD-100D-24
Manufacturer: Mean Well
Type: DC-DC Power Supplies

RSD-100 Series Features:

Compliance to EN50155 railway standard

Protections: Short Circuit / Overload / Over voltage / Input reverse polarity

Other Features:

  • 2:1 wide input range
  • 4000VDC I/O isolation
  • Cooling by free air convection
  • Built in constant current limiting circuit
  • 1U low profile 36mm
  • All using 105°C long life electrolytic capacitors
  • 100% full load burn in test
  • LED indicator for power on
  • 3 years warranty
Wattage 100 100 100 100 100 100 100 100 100
Input Voltage 14.4~33.6 14.4~33.6 14.4~33.6 28.8~67.2 28.8~67.2 28.8~67.2 57.6~154 28.8~67.2 28.8~67.2
Output Current 0~20 0~8.4 0~4.2 0~20 0~8.4 0~4.2 0~20 0~8.40 0~4.2
Output Voltage 5 5 5 5 5 5 5 5 5
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment N/A N/A N/A N/A N/A N/A N/A N/A N/A
Dimensions 161x68x36 161x68x36 161x68x36 161x68x36 161x68x36 161x68x36 161x68x36 161x68x36 161x68x36
Working Temperature -40~+55°C(no derating), +70°C @ 60% load by free air convection, +70°C no derating with external base plate, TX class compliance
Safety Standards Meet IEC60950-1 (LVD)
EMC Standards Compliance to EN55022 class B, EN50121-3-2, EN61000-4-2,3,4,6,8
