MEAN WELL

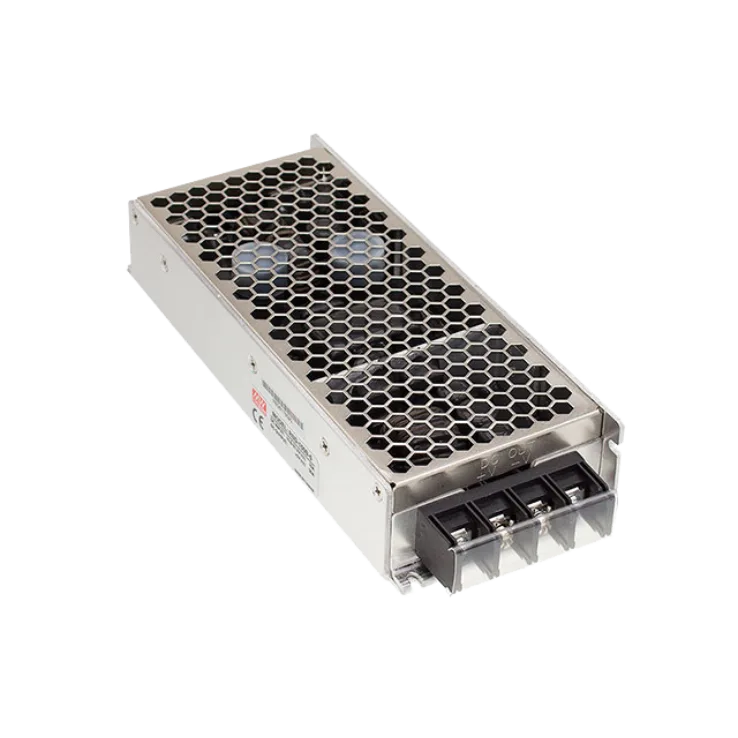

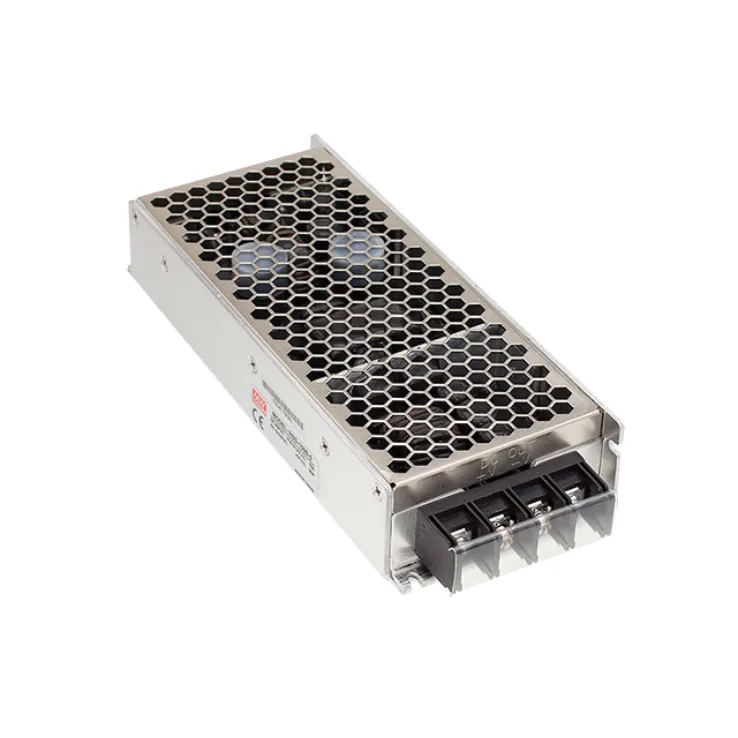

MEAN WELL RSD-150 Series DC-DC Power Supplies 150W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
RSD-150 Series Features:
Compliance to EN50155 railway standards
Protections: Short circuit / Overload / Over voltage / Over temp./ Input reverse polarity
Other features:
- 2:1 wide input range
- 4000VDC I/O isolation
- Cooling by free air convection
- Built-in constant current limiting circuit
- 1U low profile 36mm
- All using 105°C long life electrolytic capacitors
- 100% full load burn-in test
- 3 years warranty
| Wattage | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 14.4~33.6 | 14.4~33.6 | 14.4~33.6 | 28.8~67.2 | 14.4~33.6 | 28.8~67.2 | 57.6~154 | 57.6~154 | 57.6~154 |
| Output Current | 0~30 | 0~12.5 | 0~6.5 | 0~30 | 0~12.5 | 0~6.3 | 0~30 | 0~12.5 | 0~6.3 |
| Output Voltage | 5 | 12 | 24 | 5 | 12 | 24 | 5 | 12 | 24 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single |
| DC output adjustment | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions | 189x 77x 36 | 189x 77x 36 | 189x 77x 36 | 189x 77x 36 | 189x 77x 36 | 189x 77x 36 | 189x 77x 36 | 189x 77x 36 | 189x 77x 36 |
| Working Temperature | -40~+55°C(no derating), +70°C @ 60% load by free air convection, +70°C no derating with external base plate, TX class compliance | ||||||||
| Safety Standards | Meet IEC60950-1 (LVD) | ||||||||
| EMC Standards | Compliance to EN55022 class B, EN61000-4-2,3,4,6,8 | ||||||||
