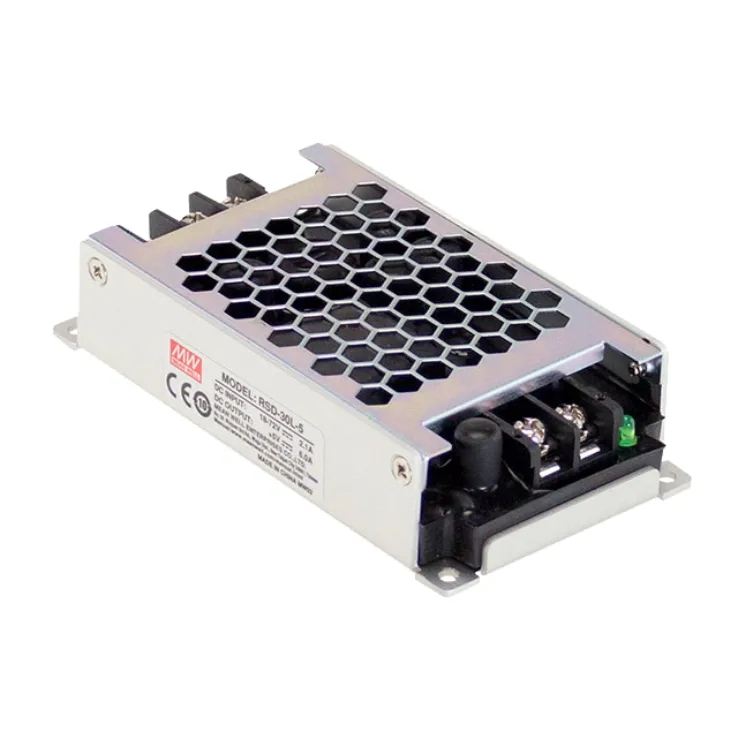

MEAN WELL RSD-30 Series DC-DC Power Supplies 19.8–30W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
RSD-30 Series Features:
Compliance to EN50155 and EN45545-2 railway standard
Protections: Short circuit / Overload / Over voltage / Input reverse polarity
Other Features:
- Ultra compact and 1U low profile (25mm)
- 4:1 wide input range
- No minimum load required
- 4000VDC I/O isolation
- Half encapsulated, cooling by free air convection
- -40~+70°C wide working temperature
- Built-in constant current limiting circuit
- LED indicator for power on
- 3 years warranty
| Wattage | 19.8 | 30 | 30 | 30 | 19.8 | 30 | 30 | 30 | 19.8 | 30 | 30 | 30 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 9-36VDC | 9-36VDC | 9-36VDC | 9-36VDC | 9-36VDC | 9-36VDC | 9-36VDC | 9-36VDC | 9-36VDC | 9-36VDC | 9-36VDC | 9-36VDC |
| Output Current | 0~6 | 0~6 | 0-2.5 | 0~1.25 | 0~6 | 0~6 | 0~2.5 | 0~1.25 | 0~6 | 0~6 | 0~2.5 | 0~1.25 |
| Output Voltage | 3.3 | 5 | 12 | 24 | 3.3 | 5 | 12 | 24 | 3.3 | 5 | 12 | 24 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single |
| DC output adjustment | 3.3V | 5V | 12V | 24V | 3.3V | 5V | 12V | 24V | 3.3V | 5V | 12V | 24V |
| Dimensions | 113 x 60 x 25 | 113 x 60 x 25 | 113 x 60 x 25 | 113 x 60 x 25 | 113 x 60 x 25 | 113 x 60 x 25 | 113 x 60 x 25 | 113 x 60 x 25 | 113 x 60 x 25 | 113 x 60 x 25 | 113 x 60 x 25 | 113 x 60 x 25 |
| Working Temperature | -40~+55°C(no derating), +70°C @ 60% load by free air convection, +70°C no derating with external base plate, TX class compliance | |||||||||||
| Safety Standards | Meet IEC60950-1 (LVD) | |||||||||||
| EMC Standards | EM55032, EN6100-3-2,3, EN61000-4-2,3,4,5,6. Compliance to EN5545-2 for fire protection; Meet EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC | |||||||||||
