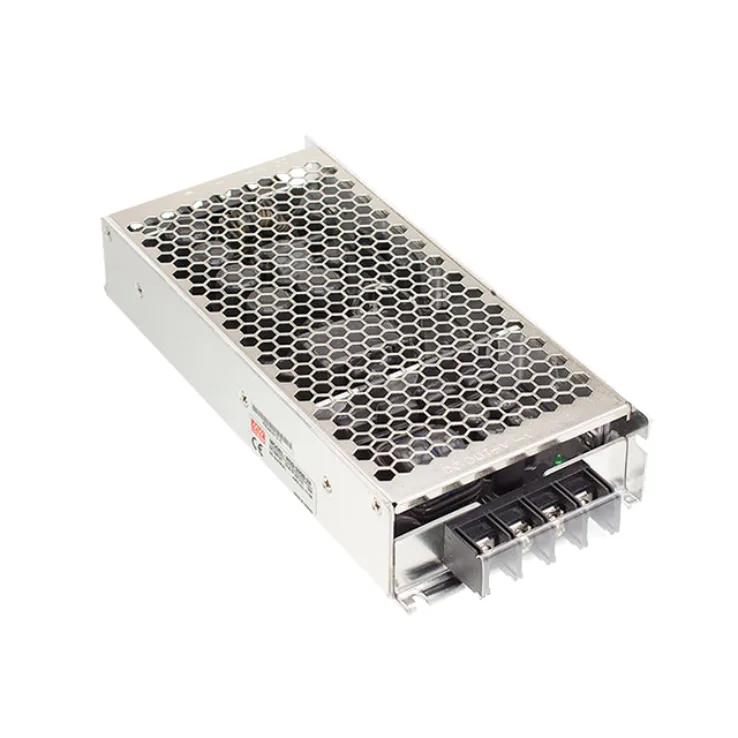

MEAN WELL RSD-300 Series DC-DC Power Supplies 300W

Models:	RSD-300B-12 RSD-300B-24 RSD-300B-48 RSD-300C-12 RSD-300C-24 RSD-300C-48 RSD-300D-12 RSD-300D-24 RSD-300D-48
Manufacturer:	MEAN WELL
Type:	DC-DC Power Supplies

RSD-300 Series Features:

2:1 wide input range

Design refer to EN50155 railway standard

Protections: Short circuit / Overload / Over voltage / Over temp./ Input reverse polarity

Other features:

Spec	RSD-300B-12	RSD-300B-24	RSD-300B-48	RSD-300C-12	RSD-300C-24	RSD-300C-48	RSD-300D-12	RSD-300D-24	RSD-300D-48
Wattage	300	300	300	300	300	300	300	300	300
Input Voltage	14.4~33.6	14.4~33.6	14.4~33.6	28.8~67.2	28.8~67.2	28.8~67.2	57.6~154	57.6~154	57.6~154
Output Current	0~25	0~25	0~25	0~25	0~25	0~25	0~25	0~25	0~25
Output Voltage	12	24	48	12	24	48	12	24	48
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single	Single
Dimensions	216x 97x 40	216x 97x 40	216x 97x 40	216x 97x 40	216x 97x 40	216x 97x 40	216x 97x 40	216x 97x 40	216x 97x 40
Working Temperature	-40~+55°C(no derating), +70°C @ 60% load by free air convection, +70°C no derating with external base plate, TX class compliance
Safety Standards	Meet IEC60950-1 (LVD)
EMC Standards	Compliance to EN55022 class B, EN50121-3-2, EN61000-4-2, 3, 4, 6, 8
