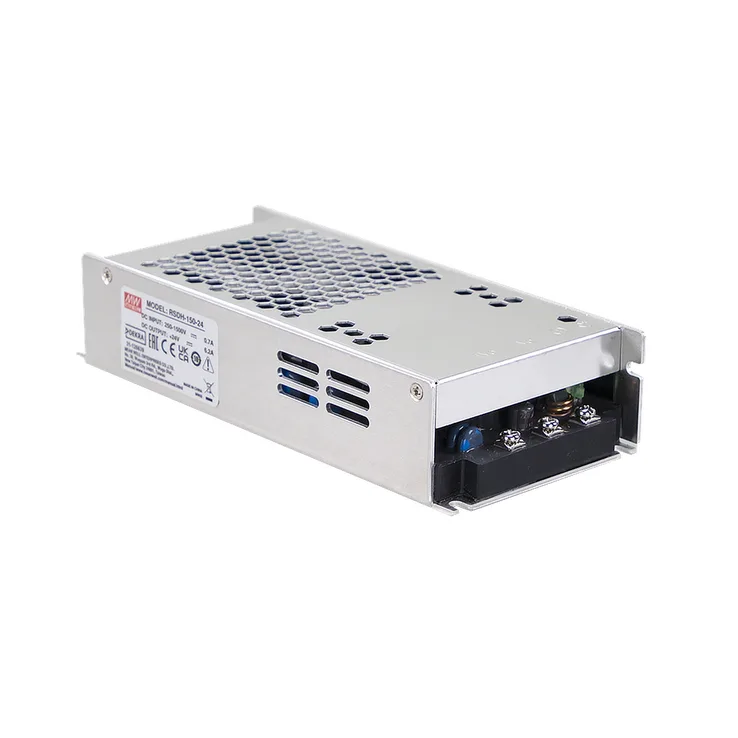

MEAN WELL RSDH-150 Series DC-DC Power Supplies 120–150W

RSDH-150 Series Features:

RSDH-150 series is a 250~1500Vdc ultra-high input enclosed type DC-DC converter which can supply stable working voltage for the load.

Features:

• 250~1500Vdc 6:1 ultra-wide input range
• Withstand 1700Vdc surge input for 10 seconds
  • 4KVac I/O high isolation (reinforced isolation)
  • Protections: short circuit/ overload/ over voltage/ over temperature/ DC input under voltage/ DC input reverse polarty
  • Fanless design, half encapsulated, cooling by free air convection
  • -40~80°C ultra-wide operating temperature (>55°C derating)
  • Over voltage category II
  • Operating altitude up to 5000 meters
  • DC output voltage adjustable (12~15V, 24~29V, 30~36V, 48~58V)
  • 1U low profile 41mm
  • 3 years warranty
