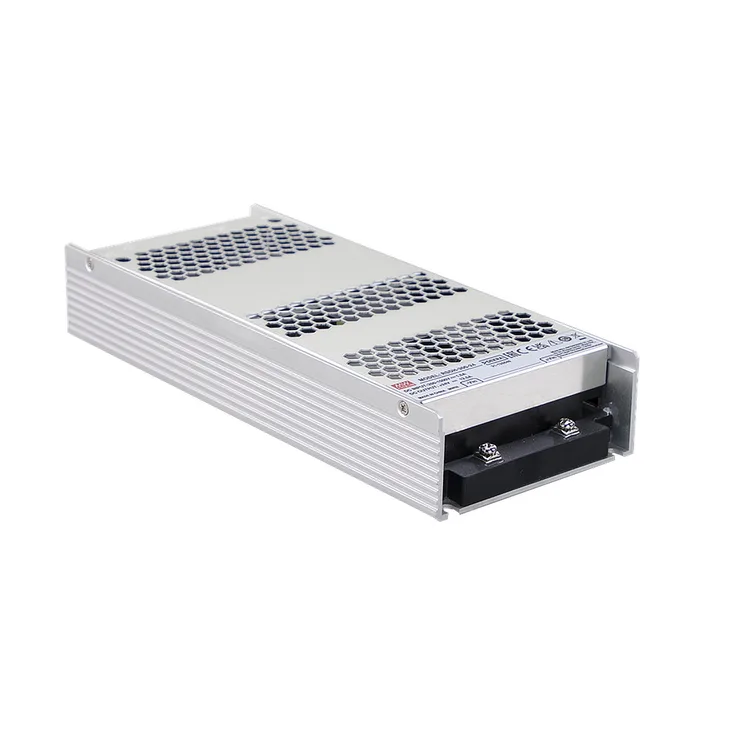

MEAN WELL RSDH-300 Series DC-DC Power Supplies 240–300W

RSDH-300 Series Features:

RSDH-300 series is a 250~1500Vdc ultra-high input enclosed type DC-DC converter which can supply stable working voltage for the load.

Features:

250~1500Vdc 6:1 ultra-wide input range
Withstand 1700Vdc surge input for 10 seconds
4KVac I/O high isolation (reinforced isolation)
Protections: short circuit/ overload/ over voltage/ over temperature/ DC input under voltage/ DC input reverse polarity
Fanless design, half encapsulated, cooling by free air convection
-40~80°C ultra-wide operating temperature (>55°C derating)
Over voltage II
Operating altitude up to 5000 meters
DC output voltage adjustable (12~15V, 24~29V, 30~36V, 48~58V)
1U low profile 41mm
3 years warranty

Spec	RSDH-300-12	RSDH-300-24	RSDH-300-32	RSDH-300-48
Wattage	240	300	300	300
Input Voltage	250~1500Vdc	250~1500Vdc	250~1500Vdc	250~1500Vdc
Output Current	20	12.5	9.37	6.25
Output Voltage	12	24	32	48
Dimensions	237x100x41mm	237x100x41mm	237x100x41mm	237x100x41mm
Working Temperature	-40~80℃
Safety Standards	IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved; Design refer to UL1741(By request)
EMC Standards	BS EN/EN55032(CISPR32)
