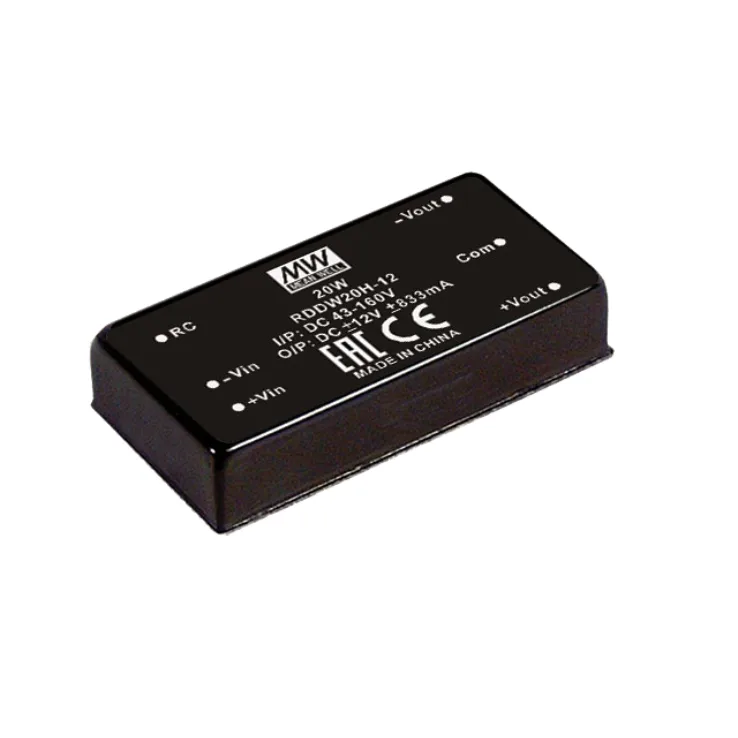

MEAN WELL RSDW20 & RDDW20 Series DC-DC Power Supplies 20W

Download Datasheet
Models:
  • RSDW20F-03
  • RSDW20F-05
  • RSDW20F-12
  • RSDW20F-15
  • RSDW20G-03
  • RSDW20G-05
  • RSDW20G-12
  • RSDW20G-15
  • RSDW20H-05
  • RSDW20H-12
  • RSDW20H-15
  • RDDW20F-05
  • RDDW20F-12
  • RDDW20F-15
  • RDDW20G-05
  • RDDW20G-12
  • RDDW20G-15R
  • RDDW20H-12
  • RDDW20H-15
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

RSDW20 & RDDW20 Series Features:

RSDW20 and RDDW20 series is 20W module type DC-DC reliable railway converter with 2"x1" package.

Features:

  • Compliance with EN50155 railway standard
  • DIP 2"x1" package with standard pinout
  • 4:1 wide input range
  • Wide operating temperature -40~+85°C
  • No minimum load required
  • Full encapsulated
  • Protections: Short circuit (continuous) / Overload / Over voltage / Input under voltage
  • 1.5KVDC, 3KVDC I/O isolation by modules
  • Remote ON/OFF control
  • 3years warranty
Wattage 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20
Input Voltage 9~36V 9~36V 9~36V 9~36V 18~75V 18~75V 18~75V 18~75V 43~160V 43~160V 43~160V 9~36V 9~36V 9~36V ±0~200mA 18~75V 18~75v 43~160V 43~160V
Output Current 5500mA 4000mA 1670mA 1330mA 5500mA 4000mA 1670mA 1330mA 4000mA 1670mA 1330mA ±0~2000mA ±0~835mA ±0~666mA ±5V ±0~835mA ±0~666mA ±0~1833mA ±0~667mA
Output Voltage 3.3V 5V 12V 15V 3.3V 5V 12V 15V 5V 12V 15V ±5V ±12V ±15V ±12V ±15v ±12V ±15V
Dimensions 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm 50.8*25.4*10.2mm
Working Temperature -40~+85°C
Safety Standards EAC TP TC 004 approved
EMC Standards EN55032
