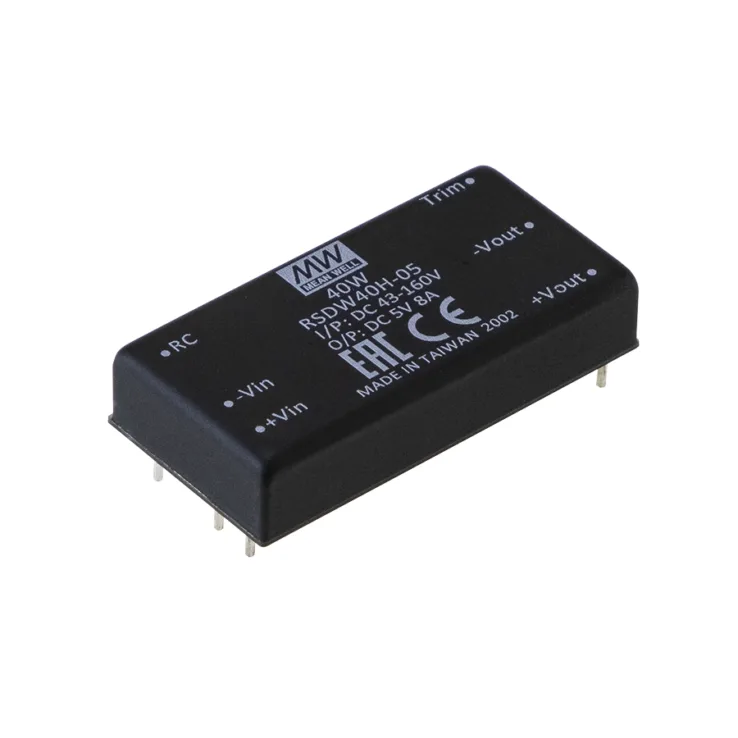

Mean Well RSDW 40 Series DC-DC Power Supplies 40W

Download Datasheet
Models:
  • RSDW40F-03
  • RSDW40F-05
  • RSDW40F-12
  • RSDW40F-15
  • RSDW40G-03
  • RSDW40G-05
  • RSDW40G-12
  • RSDW40G-15
  • RSDW40H-05
  • RSDW40H-12
  • RSDW40H-15
  • RSDW40H-48
  • RDDW40F-12
  • RDDW40F-15
  • RDDW40G-12
  • RDDW40G-15
Manufacturer: Mean Well
Type: DC-DC Power Supplies

RSDW 40 Series Features:

RSDW40 and RDDW series is 40W module type DC-DC reliable railway converter with 2"x1" package.

Features:

  • Compliance with EN50155 railway standard
  • DIP 2"x1" package with standard pinout
  • 4:1 wide input range
  • Wide operating temperature -40~+90°C
  • No minimum load required
  • Full encapsulated
  • Protections: Short circuit (continuous) / Overload / Over voltage / Input under voltage
  • 1.6KVDC, 3KVDC I/O isolation by modules
  • Remote ON/OFF control
  • 3years warranty
Wattage 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40
Input Voltage 9~36V 9~36V 9~36V 9~36V 18~75V 18~75V 18~75V 18~75V 40~160V 40~160V 40~160V 40~160V 9~36V 9~36V 18~75V 18~75V
Output Current 10A 8A 3.333A 2.666A 10A 8A 3.333A 2.666A 8A 3.333A 1.667A 0.833A 0~±1.666A 0~±1.333A 0~±1.666A 0~±1.333A
Output Voltage 3.3V 5V 12V 15V 3.3V 5V 12V 15V 5V 12V 24V 48 ±12V ±15V ±12V ±15A
Dimensions 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm
Working Temperature -40~+90°C
Safety Standards EAC TP TC 004 approved
EMC Standards EN55032
