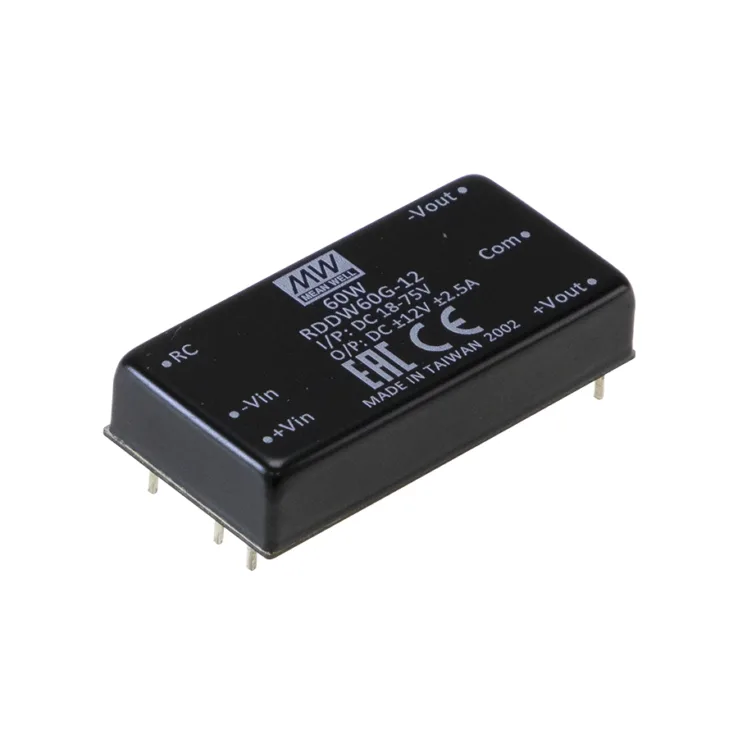

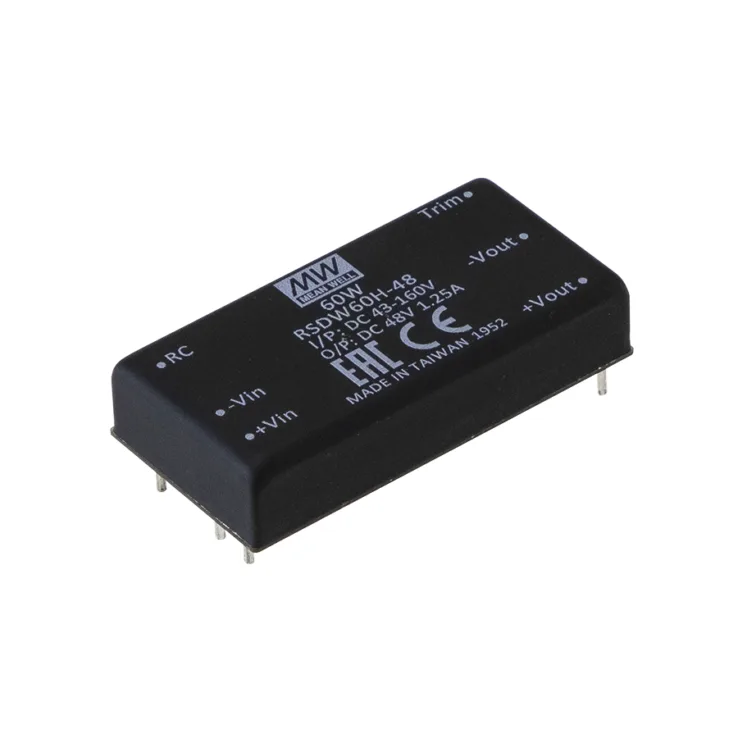

Mean Well RSDW60 & RDDW60 Series DC-DC Power Supplies 60W

Download Datasheet
Models:
  • RSDW60F-03
  • RSDW60F-05
  • RSDW60F-12
  • RSDW60F-15
  • RSDW60F-15
  • RSDW60G-03
  • RSDW60G-05
  • RSDW60G-12
  • RSDW60G-15
  • RSDW60H-05
  • RSDW60H-12
  • RSDW60H-15
  • RSDW60H-48
  • RSDW60H-48
  • RDDW60F-12
  • RDDW60F-15
  • RDDW60G-12
  • RDDW60G-15
Manufacturer: Mean Well
Type: DC-DC Power Supplies

RSDW60 & RDDW60 Series Features:

RSDW60 and RDDW60 series is 60W module type DC-DC reliable railway converter with 2"x1" package.

Features:

  • Compliance with EN50155 railway standard
  • 2"x1" compact size with low profile (10.5mm)
  • 4:1 wide input range
  • Wide operating temperature -40~+85°C
  • No minimum load required
  • Full encapsulated
  • Protections: Short circuit (continuous) / Overload / Over voltage / Input under voltage
  • 1.6KVDC, 3KVDC I/O isolation by modules
  • Remote ON/OFF control
  • 3years warranty
Wattage 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60 60
Input Voltage 9~36V 9~36V 9~36V 9~36V 9~36V 18~75V 18~75V 18~75V 18~75V 18~75V 40~160V 40~160V 40~160V 40~160V 9~36V 9~36V 18~75V 18~75V
Output Current 12A 12A 5A 4A 2.5A 12A 12A 5A 4A 2.5A 12A 5A 2.5A 1.25A ~±2.5A ~±2.0A ~±2.5A ~±2.0AR
Output Voltage 3.3V 5V 12V 15V 24V 3.3V 5V 12V 15V 24V 5V 12V 24V 48V ±12V ±15V ±12V ±15V
Dimensions 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm 50.8*25.4*10.5mm
Working Temperature -40~+85°C
Safety Standards EAC TP TC 004 approved
EMC Standards EN55032
