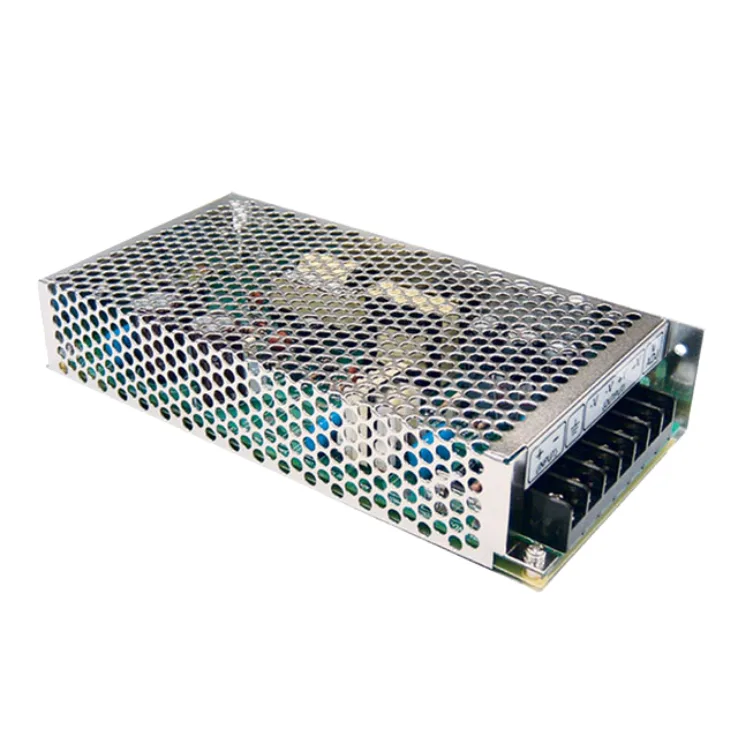

Mean Well SD-100 Series DC-DC Power Supplies 100W

Download Datasheet
Models:
  • SD-100B-5
  • SD-100B-12
  • SD-100B-24
  • SD-100C-5
  • SD-100C-12
  • SD-100C-24
  • SD-100D-5
  • SD-100D-12
  • SD-100D-24
Manufacturer: Mean Well
Type: DC-DC Power Supplies

SD-100 Series Features:

4:1 & 2:1 DC Input range

Protections: Short Circuit / Overload / Over voltage / Over temp

Other Features:

  • 2000VAC I/O Isolation
  • Forced air cooling by built in DC fan
  • High power density 10.7W/inch
  • 1U low profile 41 mm
  • Output OK signal
  • 12V / 0.25A auxiliary output
  • Built in remote On-OFF control
  • Built in remote sense function
  • 3 years warranty
Wattage 100 100 100 100 100 100 100 100 100
Input Voltage 19~36 19~36 19~36 36~72 36~72 36~72 72~144 72~144 72~144
Output Current 0~20 0~8.5 0~4.2 0~20 0~8.5 0~4.2 0~20 0~8.5 0~4.2
Output Voltage 5 12 24 5 12 24 5 12 24
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment 4.5~5.5v 5V: 4.5~5.5v, 12V: 11~16V, 24V: 23~30V 5V: 4.5~5.5v, 12V: 11~16V, 24V: 23~30V 5V: 4.5~5.5v, 12V: 11~16V, 24V: 23~30V 5V: 4.5~5.5v, 12V: 11~16V, 24V: 23~30V 23~30V 4.5~5.5v 11~16V 23~30V
Dimensions 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38 199 x 98 x 38
Working Temperature -20~+60°C
Safety Standards Meet LVD, EN60950-1 CB approved by TUV ( D type only )
EMC Standards EN55022 class B, EN61000-4-2,3,4,5,6,8
