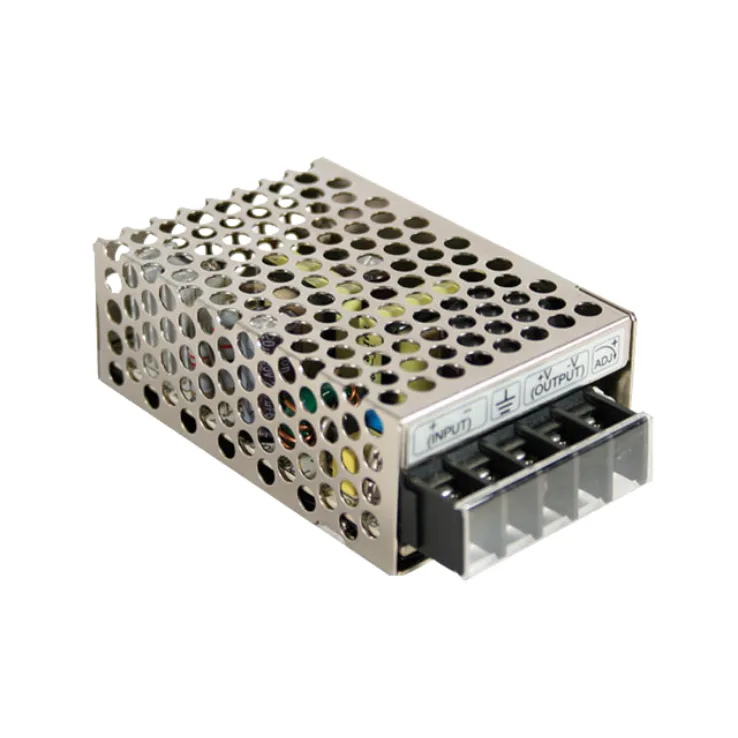

Mean Well SD-15 Series DC-DC Power Supplies 15W

Download Datasheet
Models:
  • SD-15A-12
  • SD-15A-24
  • SD-15A-5
  • SD-15B-12
  • SD-15B-24
  • SD-15B-5
  • SD-15C-12
  • SD-15C-24
  • SD-15C-5
Manufacturer: Mean Well
Type: DC-DC Power Supplies

SD-15 Series Features:

2:1 wide input range

Protections: Short Circuit / Overload / Over voltage

Other Features:

  • 1500VAC I/O isolation
  • Built in EMI filter, low ripple noise
  • Cooling by free air convection
  • 100% full load burn in test
  • Low cost, high reliability
  • 2 years warranty
Wattage 15 15 15 15 15 15 15 15 15
Input Voltage 9.2~18 9.2~18 9.2~18 18~36 18~36 18~36 36~72 36~72 36~72
Output Current 0~1.25 0~0.625 0~3.0 0~1.25 0~0.625 0~3.0 0~1.25 0~0.625 0~3.0
Output Voltage 12 24 5 12 24 5 12 24 5
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment 10.8~13.2V 21.6~26.4V 4.75~5.5V 10.8~13.2V 21.6~26.4V 4.75~5.5V 10.8~13.2V 21.6~26.4V 4.75~5.5V
Dimensions 78 x 51 x 28 78 x 51 x 28 78 x 51 x 28 78 x 51 x 28 78 x 51 x 28 78 x 51 x 28 78 x 51 x 28 78 x 51 x 28 78 x 51 x 28
Working Temperature -20B0C~ +60B0C (Refer to output derating curve) -10B0C~ +60B0C (Refer to output derating curve)
Safety Standards Meet LVD
EMC Standards EN55022 class B, EN61000-4-2,3,4,5,6,8
