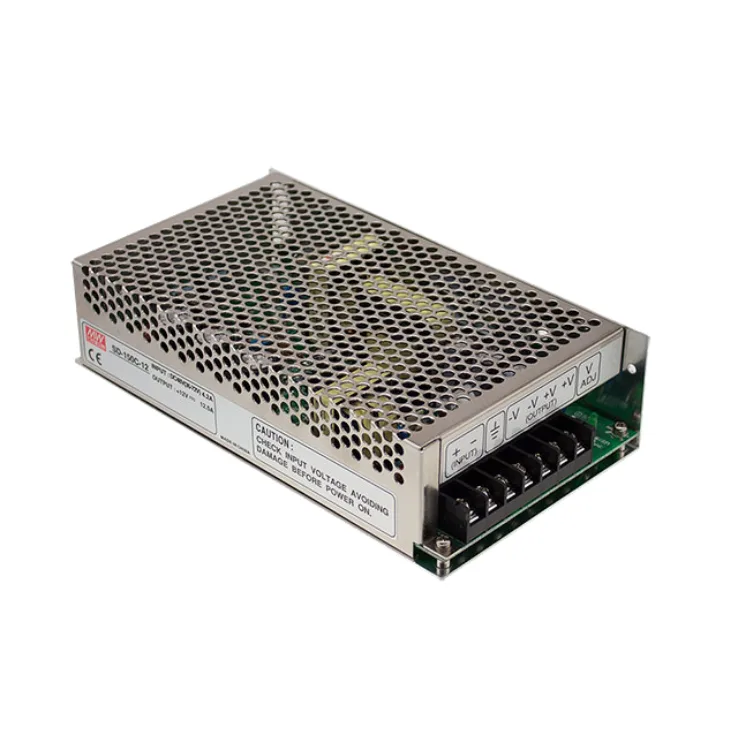

MEAN WELL SD-150 Series DC-DC Power Supplies 150W

Download Datasheet
Models:
  • SD-150B-12
  • SD-150C-12
  • SD-150D-12
  • SD-150B-24
  • SD-150C-24
  • SD-150D-24
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

SD-150 Series Features:

2:1 wide input range

Protections: Short Circuit / Overload / Over voltage

Other Features:

  • 1500VAC I/O isolation
  • Built in EMI filter, low ripple noise
  • Cooling by free air convection
  • 100% full load burn in test
  • Low cost, high reliability
  • 2 years warranty
Wattage 150 150 150 150 150 150
Input Voltage 19~36VDC 36~72VDC 72~144VDC 19~36VDC 36~72VDC 72~144VDC
Output Current 12.5 12.5A 12.5A 6.3A 6.3A 6.3A
Output Voltage 12 12V 12V 24V 24V 24
Dimensions 199*110*50mm 199*110*50mm 199*110*50mm 199*110*50mm 199*110*50mm 199*110*50mm
Working Temperature -10~60°C
Safety Standards TUV EN62368-1(for D-type only), IEC 62368-1 CB approved by TUV (for D-type only), EAC TP TC 004 approved
EMC Standards Compliance to EN55032 (CISPR32) Class B, EAC TP TC 020

More DC-DC Power Supplies from MEAN WELL

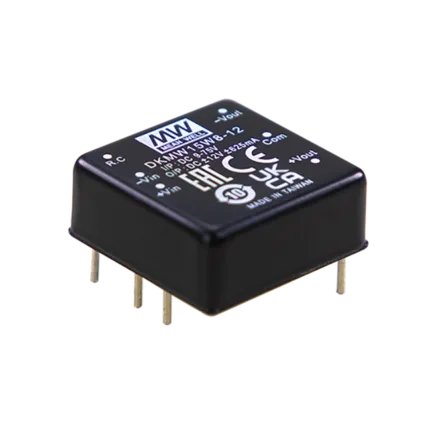

SKMW15W8 & DKMW15W8 series

DC-DC Power Supplies by MEAN WELL

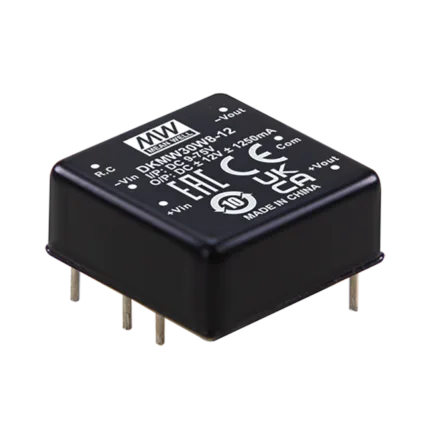

SKMW30W8 & DKMW30W8 series

DC-DC Power Supplies by MEAN WELL

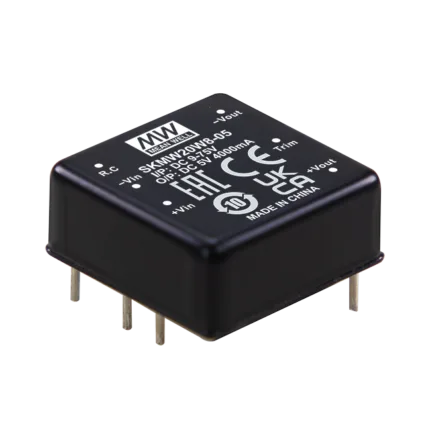

SKMW20W8 & DKMW20W8 series

DC-DC Power Supplies by MEAN WELL

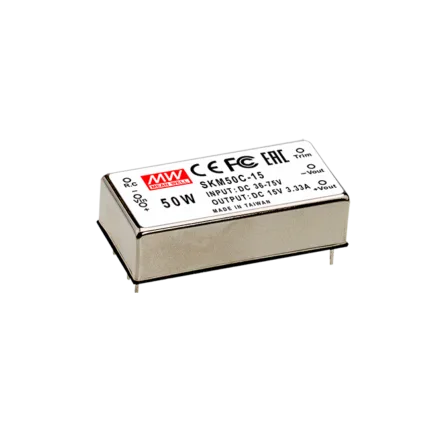

SKM50W8 series
