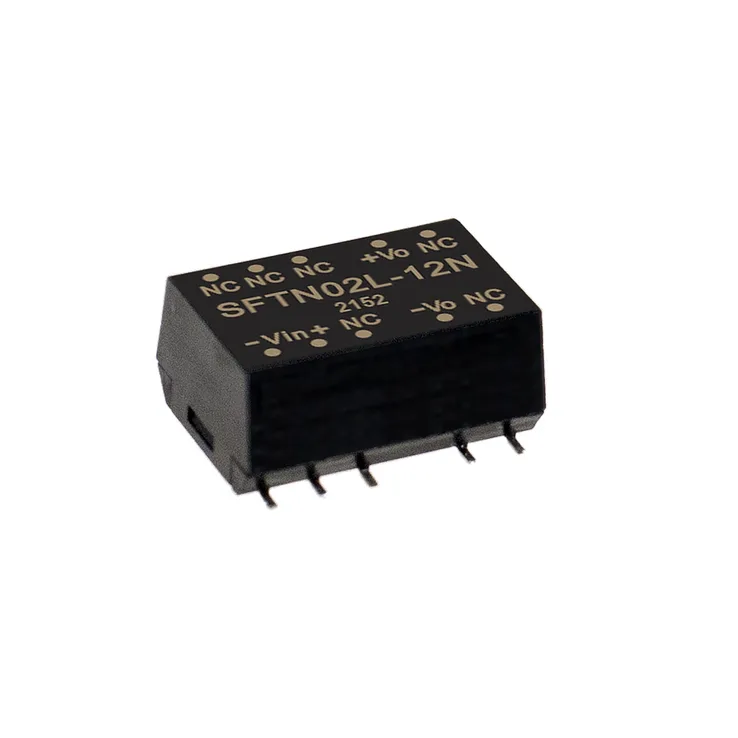

MEAN WELL SFTN02-N Series DC-DC Power Supplies 2W

Download Datasheet
Models:
  • SFTN02L-05N
  • SFTN02L-12N
  • SFTN02L-15N
  • SFTN02M-05N
  • SFTN02M-12N
  • SFTN02M-15N
  • SFTN02N-05N
  • SFTN02N-12N
  • SFTN02N-15N
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

SFTN02-N Series Features:

SFTN02-N series is 2W isolated and unregulated module type DC-DC converter with SMD package.

Features:

  • SMD package with industry standard pinout
  • Operating temperature range -40~85°C
  • High efficiency up to 86%
  • 3KVDC I/O isolation
  • Low cost
  • 3 years warranty
Wattage 2 2 2 2 2 2 2 2 2
Input Voltage 4.5~5.5 4.5~5.5 4.5~5.5 10.8~13.2 10.8~13.2 10.8~13.2 21.6~26.4 21.6~26.4 21.6~26.4
Output Current 40~400mA 33~167mA 27~133mA 40~400mA 33~167mA 27~133mA 40~400mA 33~167mA 27~133mA
Output Voltage 5 12 15 5 12 15 5 12 15
Dimensions 15.24x10.9x9.1mm 15.24x10.9x9.1mm 15.24x10.9x9.1mm 15.24x10.9x9.1mm 15.24x10.9x9.1mm 15.24x10.9x9.1mm 15.24x10.9x9.1mm 15.24x10.9x9.1mm 15.24x10.9x9.1mm
Working Temperature -40~85°C
Safety Standards EAC TP TC 004 approved
EMC Standards BS EN/EN55032(CISPR32)
