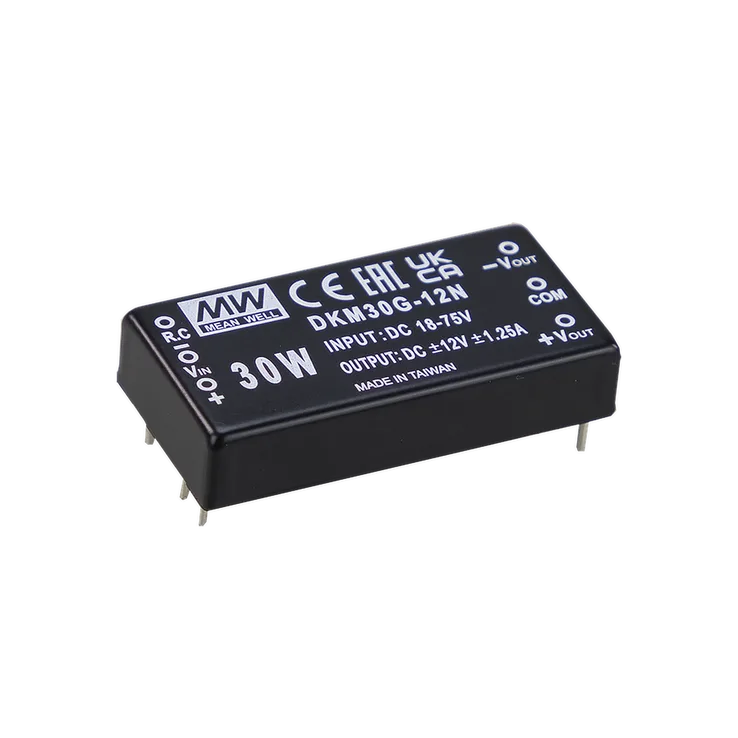

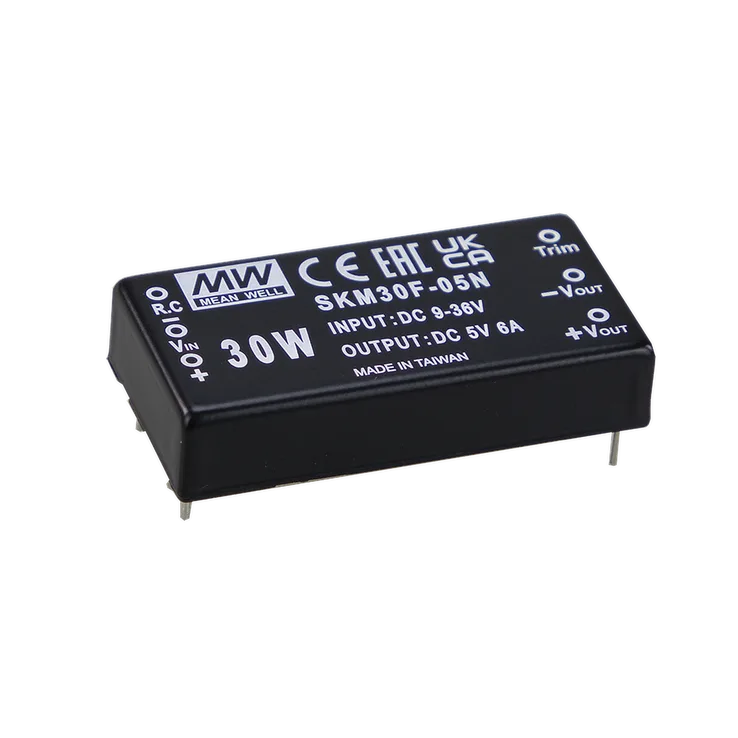

MEAN WELL SKM30-N & DKM30-N DC-DC Power Supplies 30W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
SKM30-N & DKM30-N Features:
Features:
- 2”x 1”packaging, industrial standard pin-out
- 4:1 wide input voltage range
- Free air convection, can operate between -40~+90oC(+60oC@full load no derating)
- Meeting EN55032 Class A EMI performance without external components
- No minimum load requirement
- Built-in remote ON/OFF and output trimming (±10%)
- Protections: short circuit, overload, over voltage
- Dimensions (LxWxH): 50.8x 25.4 x 11.2mm
- Approvals: EAC/ CE/ UKCA
- 3 years warranty
| Wattage | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 9~36Vdc | 9~36Vdc | 9~36Vdc | 9~36Vdc | 9~36Vdc | 18~75Vdc | 18~75Vdc | 18~75Vdc | 18~75Vdc | 18~75Vdc |
| Output Current | 0~6000mA | 0~2500mA | 0~2000mA | ±0~1250mA | ±0~1000mA | 0~6000mA | 0~2500mA | 0~2000mA | ±0~1250mA | ±0~1000mA |
| Output Voltage | 5 | 12 | 15 | ±12 | ±15 | 5 | 12 | 15 | ±12 | ±15 |
| Dimensions | 50.8x25.4x11.2mm | 50.8x25.4x11.2mm | 50.8x25.4x11.2mm | 50.8x25.4x11.2mm | 50.8x25.4x11.2mm | 50.8x25.4x11.2mm | 50.8x25.4x11.2mm | 50.8x25.4x11.2mm | 50.8x25.4x11.2mm | 50.8x25.4x11.2mm |
| Working Temperature | -40 ~ 90℃ (Refer to "Derating Curve") | |||||||||
| Safety Standards | EAC TP TC 020/2011 approved | |||||||||
| EMC Standards | BS EN/EN55032(CISPR32) | |||||||||
