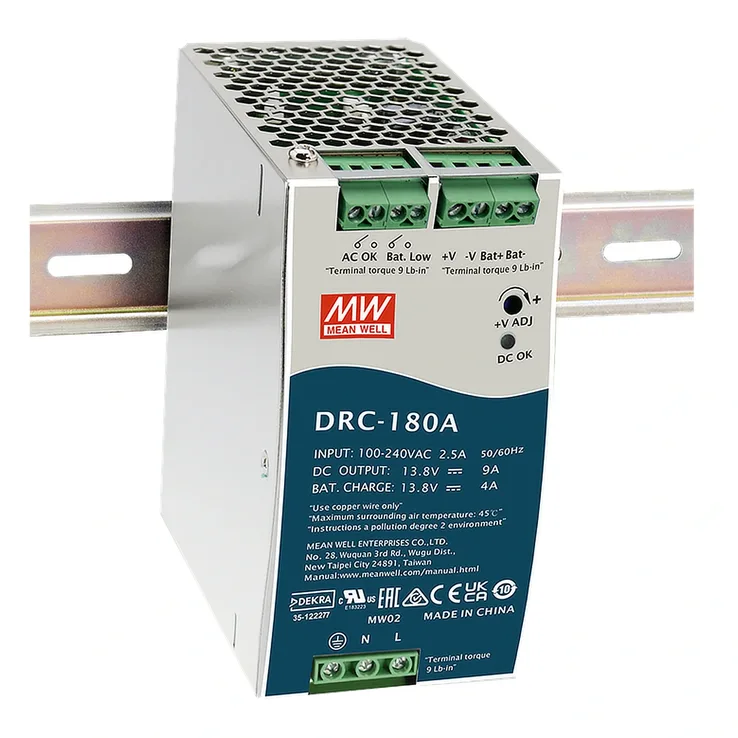

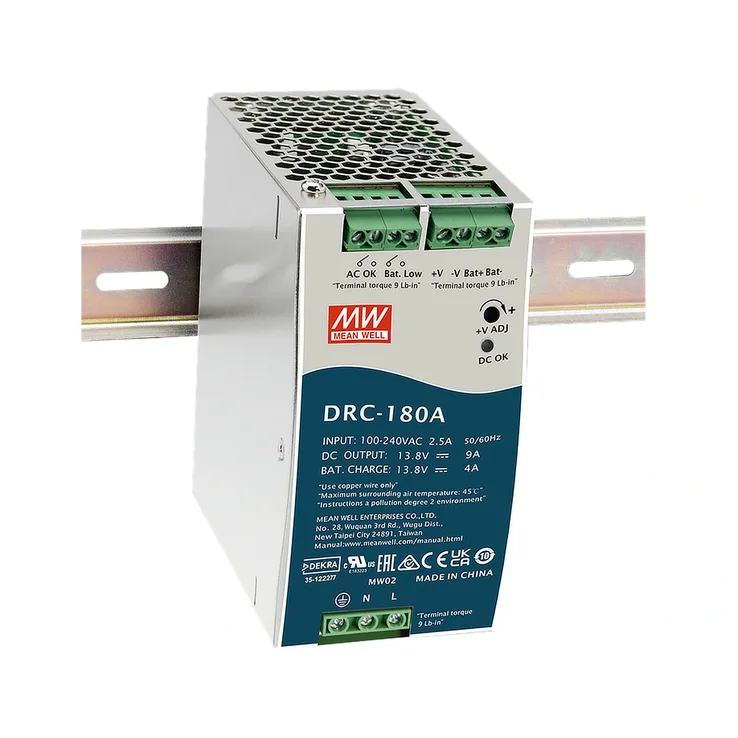

MEAN WELL DRC-180 Series Chargers 179.4W

Download Datasheet
Models:
  • DRC-180A
  • DRC-180B
Manufacturer: MEAN WELL
Type: Chargers

DRC-180 Series Features:

DRC-180 is a 180W AC/DC DIN rail type security power supply series.

Features:

  • Universal AC input/Full range
  • Built-in active PFC function
  • Alarm signal for AC OK and Battery Low ( via relay)
  • Protections: Short circuit/ Overload/Over voltage/Over temperature
  • Battery low protection/ Battery reverse polarity protection by fuse
  • Cooling by free air convection
  • -20~70°C wide operating temperature
  • Can be installed on DIN rail TS-35/7.5 or 15
  • DC output voltage adjustable (+20%)
  • LED indication for power on
  • Operating altitude up to 5000 meters
  • 3 years warranty
Wattage 179.4 179.4
Input Voltage 90~264VAC 90~264VAC
Output Current CH1: 9A, CH2: 4A(battery charger) CH1: 4.5A, CH2: 2A(battery charger)
Output Voltage CH1: 13.8V, CH2: 13.8V CH1: 27.6V, CH2: 27.6V
Dimensions 63x125.2x115mm 63x125.2x115mm
Working Temperature -20~70°C
Safety Standards UL62368-1, Dekras BS EN/EN62368-1, EAC TP TC 004, AS/NZS 62368.1approved
EMC Standards BS EN/EN55032(CISPR32)
