MEAN WELL MEAN WELL logo

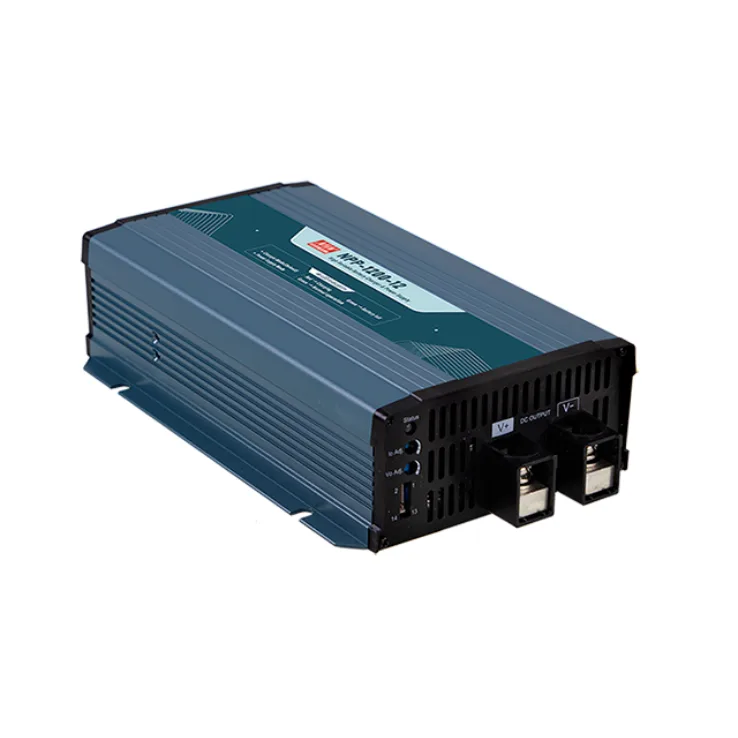

MEAN WELL NPP-1200 Series Chargers 1176–1209.6W

Download Datasheet
Models:
  • NPP-1200-12
  • NPP-1200-24
  • NPP-1200-48
Manufacturer: MEAN WELL
Type: Chargers

NPP-1200 Series Features:

NPP-1200 is a miniaturized dual-purpose charger and power supply.

Features:

  • Multi-function single unit battery charger or power supply operation modes selectable
  • Output voltage and current adjustable via potentiometer
  • 3-stage charging curve for charging mode
  • -30~70°C wide operating temperature
  • Multiple protections: Short circuit/ Over load/ Over voltage/ Over temperature
  • Thermal controlled DC fan for noise reduction
  • Remote ON/OFF control
  • Comply with 62368-1+60335-1/2-2-29 dual certification
  • Suitable for lead-acid (Pb) batteries
  • Carry handle accessory available
  • 3 years warranty
Wattage 1176 1209.6 1209.6
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 70 36 18
Output Voltage Options Boost charge voltage 14.4V, Float charge voltage 13.8V Boost charge voltage 28.8V, Float charge voltage 27.6V Boost charge voltage 57.6V, Float charge voltage 55.2V
Dimensions 250x158x67mm 250x158x67mm 250x158x67mm
Working Temperature -30~70°C
Safety Standards CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
EMC Standards BS EN/EN55032(CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3
