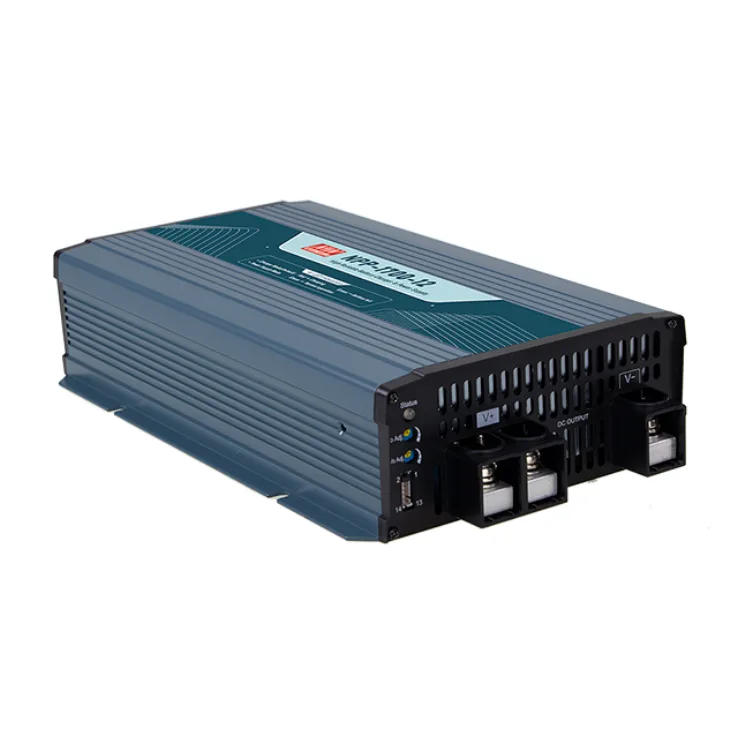

MEAN WELL NPP-1700 Series Chargers 1428–1680W

NPP-1700 Series Features:

NPP-1700 is a miniaturizes dual-purpose charger and power supply.

Features:

Multi-function single unit battery charger or power supply operation modes selectable
Ultra-wide output voltage (10.5~21V, 21~42V, 42~80V)

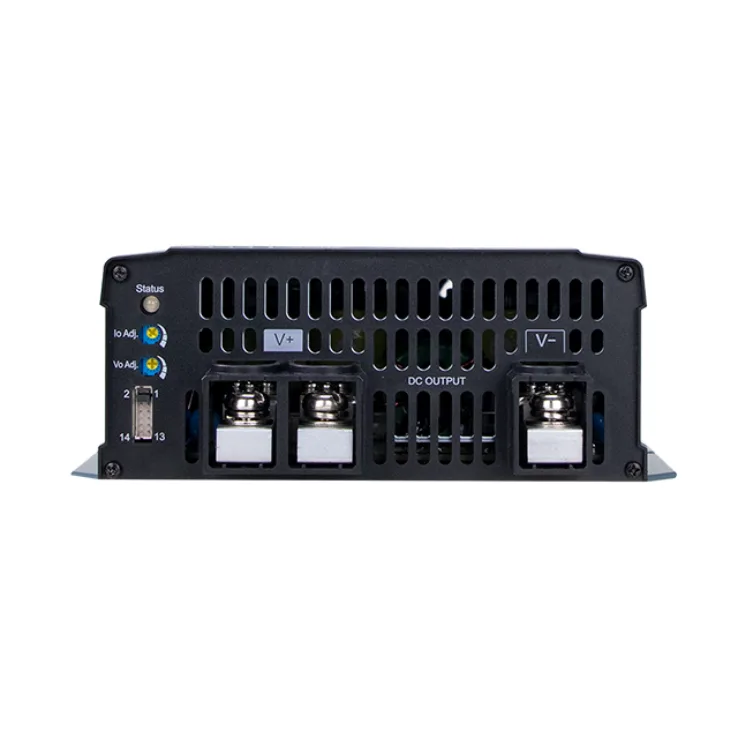

Output voltage and current adjustable via potentiometer
3-stage charging curve for charging mode
-30~+70^oC wide operating temperature
Thermal controlled DC fan for noise reduction
Multiple protections: Short circuit / Over load / Over voltage / Over temperature
Suitable for lead-acid or li-ion batteries
Carry handle accessory available (Order No.: DS-Carry handle)
Safety approval: CB, UL, DEKRA, EAC, CE, UKCA (62368-1 + 60335-1/-2-29)
3-year warranty

Spec	NPP-1700-12	NPP-1700-24	NPP-1700-48
Wattage	1428	1680	1680

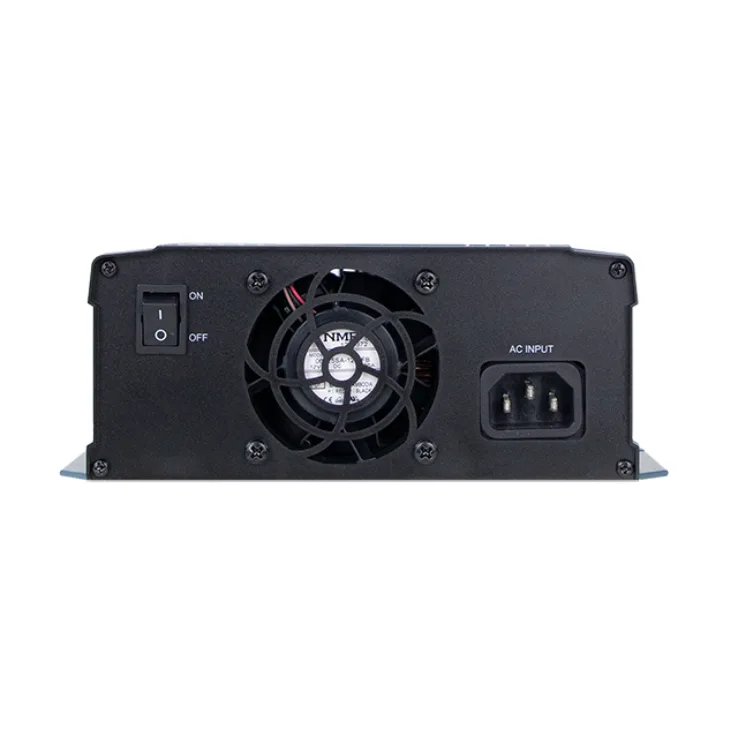

Input Voltage	90~264VAC	90~264VAC	90~264VAC
Output Current	85	50	25
Output Voltage Options	10.5~21	21~42	42~80
Dimensions	300x184x70mm	300x184x70mm	300x184x70mm
Working Temperature	-30~70°C
Safety Standards	CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
EMC Standards	BS EN/EN55032 (CISPR32), BS EN/EN55014-1
