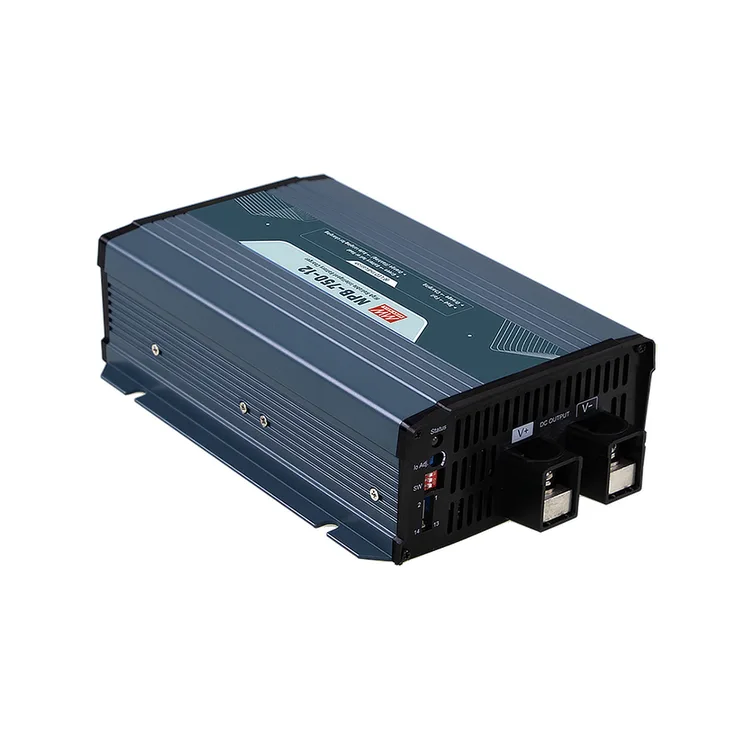

MEAN WELL NPB-750 Series Chargers 722.4–759.4W

NPB-750 Series Features:

NPB-750 is a miniaturizes, versatile, and ultra-wide voltage intelligent charger.

Features:

Patented auto ranging with ultra-wide charging voltage
Built-in CANBus protocol for control, setting and monitoring
Programmable 2/3 stage and charging curve via SBP-001
Manual setting for 2/3 stage and 4 built-in charging curves via DIP S.W
Multiple protections: Short circuit/ Over voltage/ Over temperature/ Battery under voltage/ Battery reverse polarity (No damage)
Charger OK and Battery full signal
Temperature compensation function to prolong battery life (Lead-acid only)
-30~70°C wide operating temperature
Thermal controlled DC fan for noise reduction
Remote ON/OFF control
Smart programmer available (SBP-001, sold separately)
Carry handle accessory available (DS-carry handle, sold separately)
Comply with 62368-1 + 60335-1/-2-29 dual certification
Suitable for lead-acid (Pb) and li-ion batteries
3 years warranty

Spec	NPB-750-12	NPB-750-24	NPB-750-48
Wattage	722.4	756	759.4
Input Voltage	90~264VAC	90~264VAC	90~264VAC
Output Current	43	22.5	11.3
Output Voltage	Boost charge 14.4V, Float charge 13.8V	Boost charge 28.8V, Float charge 27.6V	Boost charge 57.6V, Float charge 55.2V
Dimensions	230x158x67mm	230x158x67mm	230x158x67mm
Working Temperature	-30~70°C
Safety Standards	CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
EMC Standards	BS EN/EN55032(CISPR32), BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3
