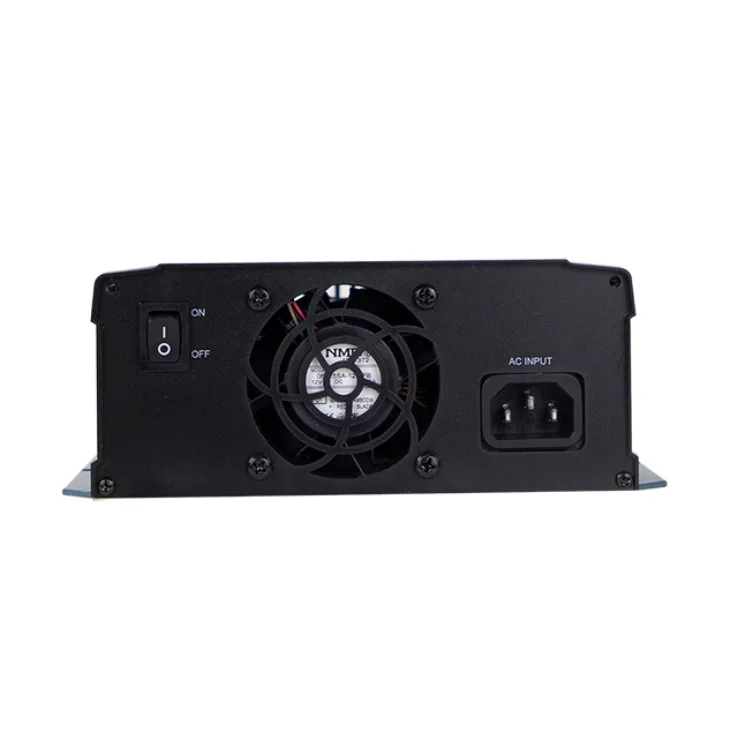

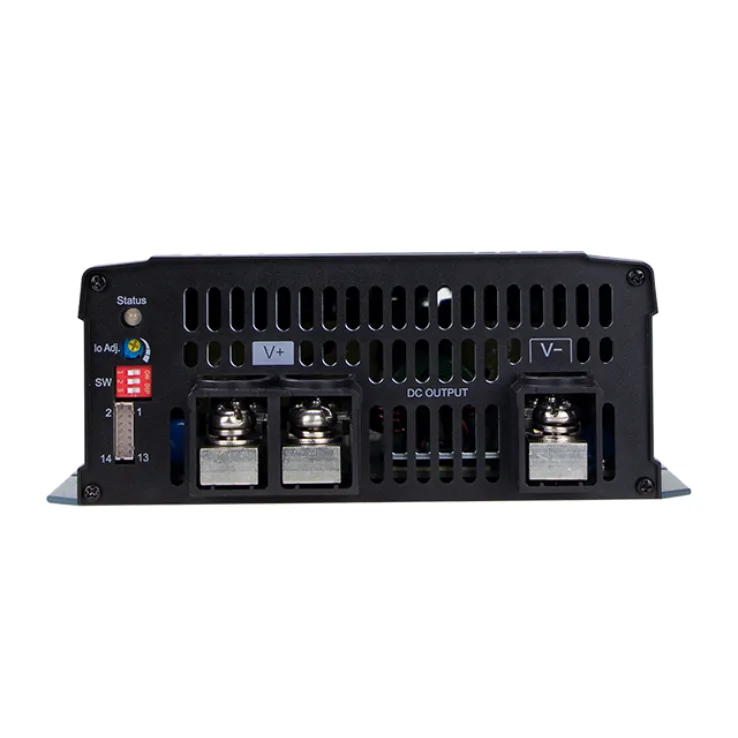

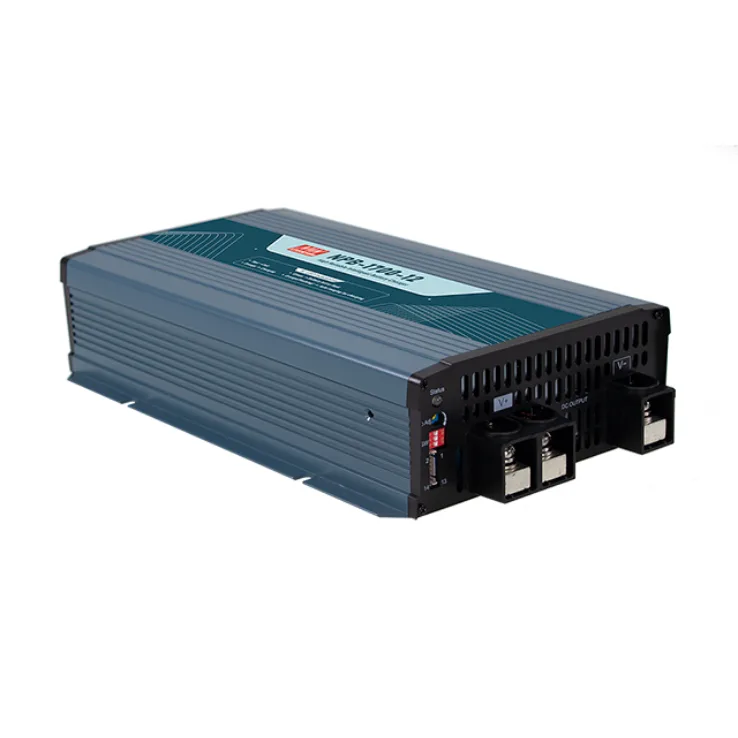

MEAN WELL NPB-1700 Series Chargers 1428–1680W

Download Datasheet
Models:
  • NPB-1700-12
  • NPB-1700-24
  • NPB-1700-48
Manufacturer: MEAN WELL
Type: Chargers

NPB-1700 Series Features:

NPB-1700 is a miniaturized, versatile and ultra-wide voltage intelligent charger.

Features:

  • Ultra-wide charging voltage (10.5~21V, 21~42V, 42~80V)
  • Built-in CANBus protocol for control, setting and monitoring
  • Programmable 2/3 stage and charging curve settings via SBP-001
  • Manual setting for 2/3 stage and 4 built-in charging curves via DIP switch
  • Adjust charging current between 50~100% via VR on front panel
  • Over temperature automatic de-rating
  • Thermal controlled DC fan for noise reduction
  • Temperature compensation function to prolong battery life
  • Multiple protections: Short circuit / Over voltage / Over temperature / Battery under voltage / Battery reverse polarity (no damage)
  • Suitable for lead-acid (Pb) and li-ion batteries
  • Carry handle accessory available (Order No.: DS-Carry handle)
  • Safety: CB, UL, DEKRA, EAC, CE, UKCA (62368-1 + 60335-1/-2-29)
  • 3-year warranty
Wattage 1428 1680 1680
Input Voltage 90~264VAC 90~264VAC 90~264VAC
Output Current 85 50 25
Output Voltage Options 10.5~21 21~42 42~80
Dimensions 300x184x70mm 300x184x70mm 300x184x70mm
Working Temperature -30~70°C
Safety Standards CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
EMC Standards BS EN/EN55032 (CISPR32), BS EN/EN55014-1
