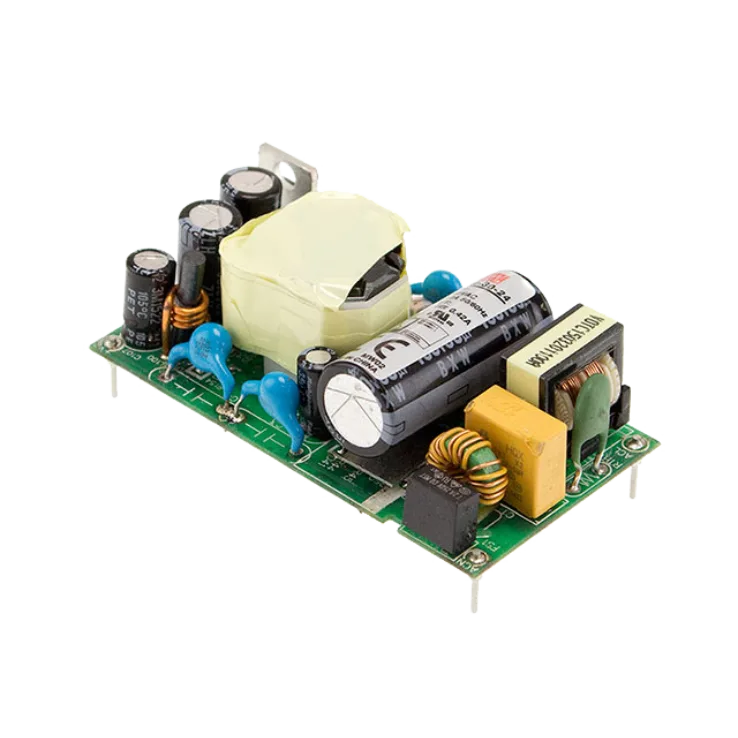

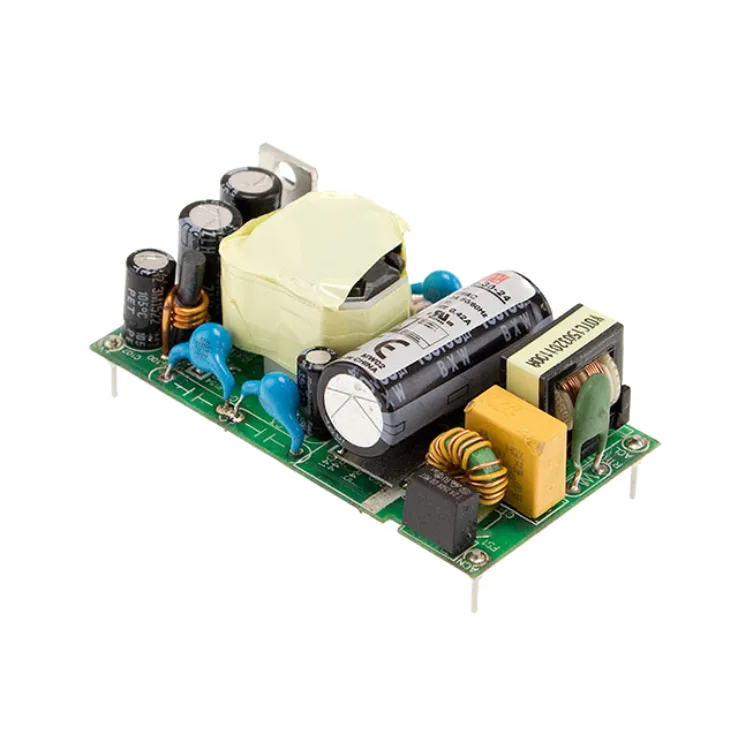

MEAN WELL MFM-30 Series Open Frame Power Supplies 19.8–31.2W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Open Frame Power Supplies |
MFM-30 Series Features:
Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
No load power consumption <0.075W
Wide operating temp range -40~+85°C
Protections: Short circuit / Overload / Over voltage
Other features:
- 2.58"x1.38" compact size
- Suitable for BF application with appropriate system consideration
- Extremely low leakage current
- EMI class B for class II configuration
- No minimum load required
- 3 years warranty
| Wattage | 19.8 | 30 | 30 | 30 | 31.2 | 30.2 |
|---|---|---|---|---|---|---|
| Input Voltage | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC |
| Output Current | 7.8A | 6.9A | 2.9A | 2.3A | 1.5A | 0.73A |
| Output Voltage | 3.3 | 5 | 12 | 15 | 24 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single |
| Dimensions | 65x 35x 23 | 65x 35x 23 | 65x 35x 23 | 65x 35x 23 | 65x 35x 23 | 65x 35x 23 |
| Working Temperature | -40-+85°C | |||||
| Safety Standards | IEC60601-1, EN60601-1, ULANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to EN60335-1 | |||||
| EMC Standards | EN55011, EN61000-3-2,3, EN60601-1-2, EN61000-4-2,3,4,5,6,8,11 | |||||
