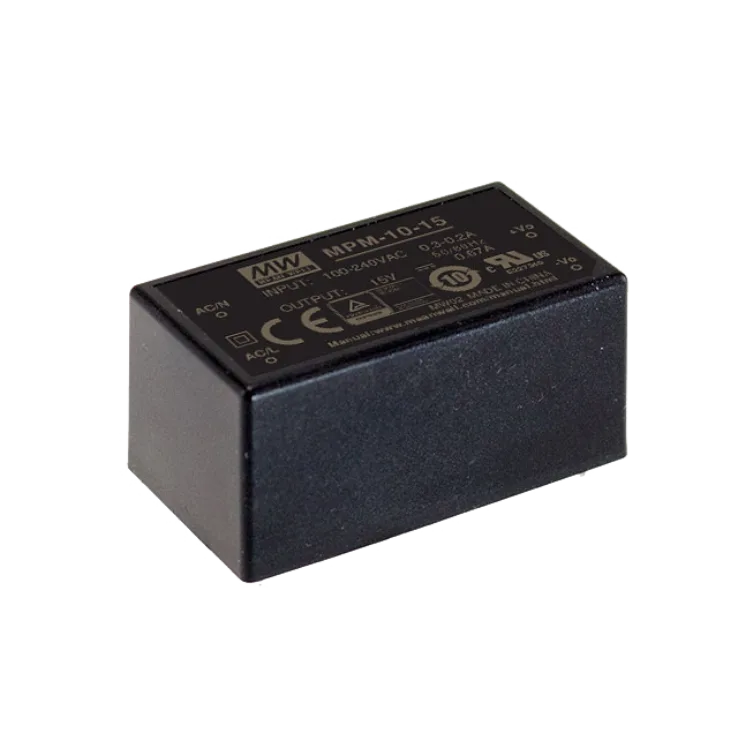

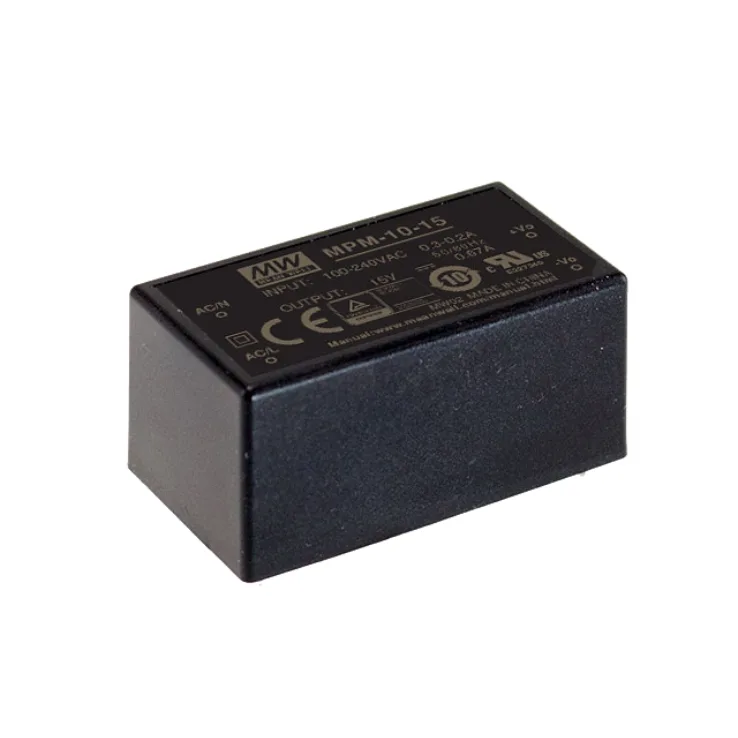

MEAN WELL MPM-10 Series Open Frame Power Supplies 8.3–10.2W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Open Frame Power Supplies |
MPM-10 Series Features:
Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
No load power consumption <0.075W
Wide operating temp range -30~+85°C
Protections: Short circuit / Overload / Over voltage
Other features:
- 1.8"x1" compact size
- Suitable for BF application with appropriate system consideration
- Extremely low leakage current
- EMI class B for class II configuration
- 3 years warranty
| Wattage | 8.3 | 10 | 10.2 | 10 | 10 |
|---|---|---|---|---|---|
| Input Voltage | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC |
| Output Current | 2.5A | 2A | 0.85A | 0.67A | 0.42A |
| Output Voltage | 3.3 | 5 | 12 | 15 | 24 |
| Output Voltage Options | Single | Single | Single | Single | Single |
| Dimensions | 45.7x 25.4x 21.5 | 45.7x 25.4x 21.5 | 45.7x 25.4x 21.5 | 45.7x 25.4x 21.5 | 45.7x 25.4x 21.5 |
| Working Temperature | -30-+85°C | ||||
| Safety Standards | IEC60601-1, EN60601-1, ULANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to EN60335-1 | ||||
| EMC Standards | EN55011, EN61000-3-2,3, EN55024, EN60601-1-2, EN61204-3 EN61000-4-2,3,4,5,6,8,11 | ||||
