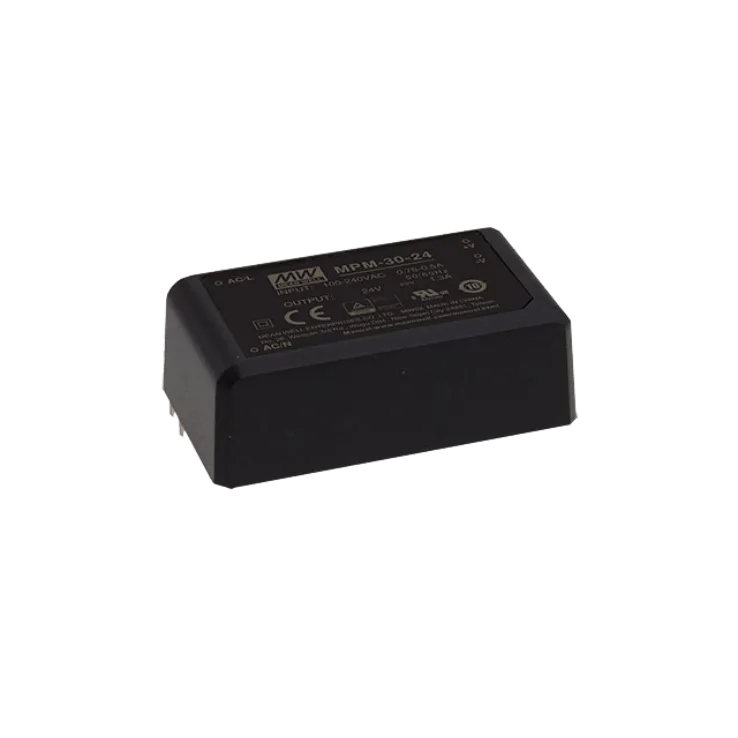

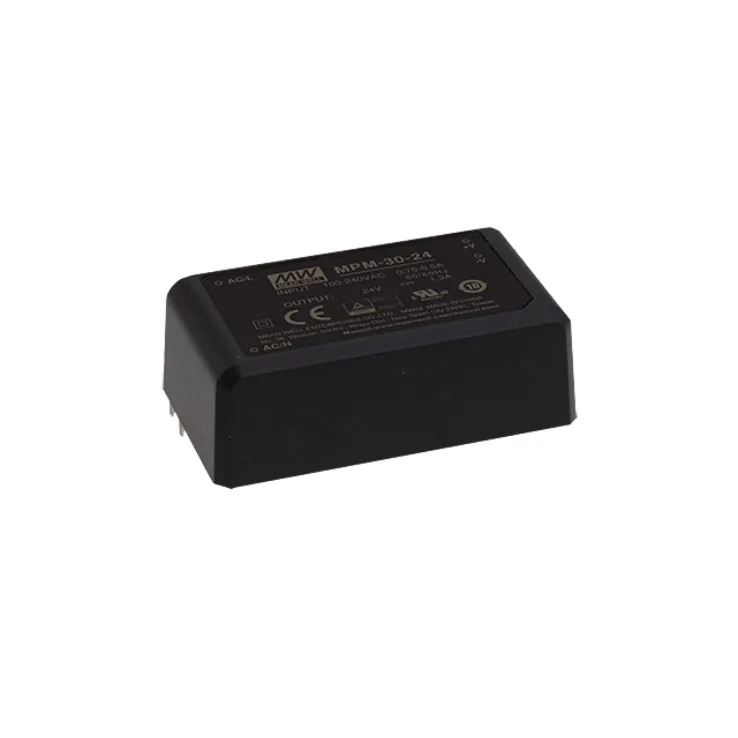

Mean Well MPM-30 Series Open Frame Power Supplies 19.8–31.2W

Download Datasheet
Models:
  • MPM-30-3.3ST
  • MPM-30-5ST
  • MPM-30-12ST
  • MPM-30-15ST
  • MPM-30-24ST
  • MPM-30-48ST
  • MPM-30-3.3
  • MPM-30-5
  • MPM-30-12
  • MPM-30-15
  • MPM-30-24
  • MPM-30-48
Manufacturer: Mean Well
Type: Open Frame Power Supplies

MPM-30 Series Features:

Medical safety approved (2x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1

No load power consumption <0.075W

Wide operating temp range -40~+85°C

Protections: Short circuit / Overload / Over voltage

Other features:

  • 2.73bx1.53b compact size
  • Suitable for BF application with appropriate system consideration
  • Extremely low leakage current
  • EMI class B for class II configuration
  • 3 years warranty
Wattage 19.8 30 30 30 31.2 30.2 19.8 30 30 30 31.2 30.2
Input Voltage 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC
Output Current 7.8A 6.9A 2.9A 2.3A 1.5A 0.73A 7.8A 6.9A 2.9A 2.3A 1.5A 0.73A
Output Voltage 3.3 5 12 15 24 48 3.3 5 12 15 24 48
Output Voltage Options Single Single Single Single Single Single Single Single Single Single Single Single
Dimensions 91x 39.5x 28.5 91x 39.5x 28.5 91x 39.5x 28.5 91x 39.5x 28.5 91x 39.5x 28.5 91x 39.5x 28.5 69.5x 39x 24 69.5x 39x 24 69.5x 39x 24 69.5x 39x 24 69.5x 39x 24 69.5x 39x 24
Working Temperature -40-+85°C
Safety Standards IEC60601-1, EN60601-1, ULANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to EN60335-1
EMC Standards EN55011, EN61000-3-2,3, EN60601-1-2, EN61000-4-2,3,4,5,6,8,11
