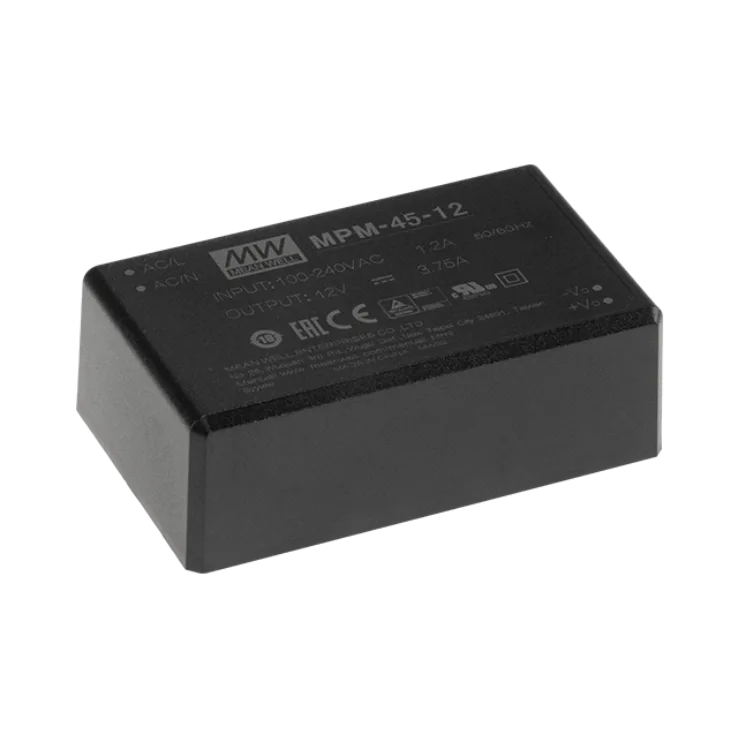

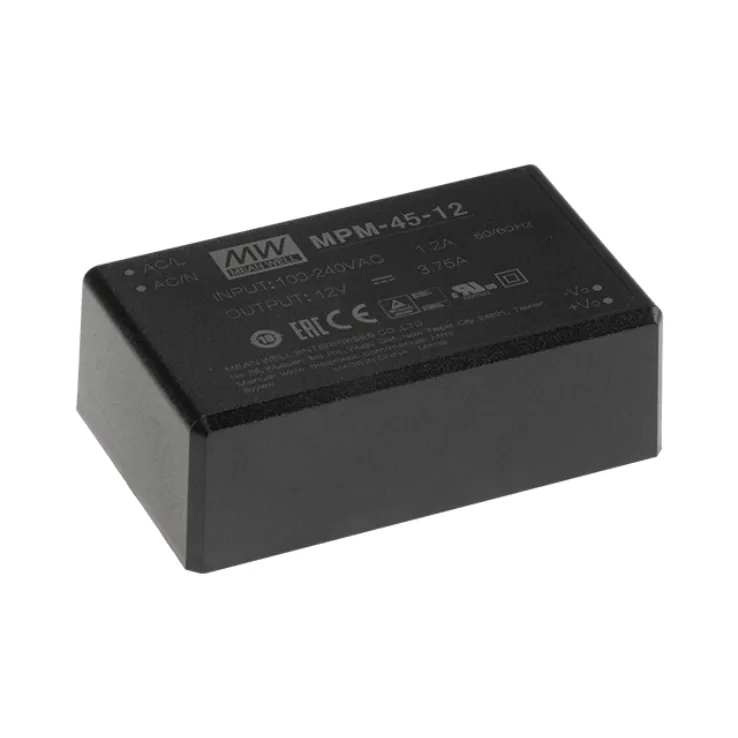

MEAN WELL MPM-45 Series Open Frame Power Supplies 45–50W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Open Frame Power Supplies |
MPM-45 Series Features:
3.43" x 2.05" compact size
PCB chassis or screw terminal mounting version
Other features:
- Medical safety approved (2 x MOPP) to according ANSI/AAMI ES60601-1 and IEC/EN60601-1
- No load power consumption<0.1W
- Wide operating temp. rage -30~80°C
- Extremely low leakage current
- EMI Class B without additional components
- Protections: Short circuit / Overload / Over voltage
- Isolation Class II
- 3 years warranty
| Wattage | 50 | 45 | 45 | 45.1 | 45.1 |
|---|---|---|---|---|---|
| Input Voltage | 80-264VAC,113-370VDC | 80-264VAC,113-370VDC | 80-264VAC,113-370VDC | 80-264VAC,113-370VDC | 80-264VAC,113-370VDC |
| Output Current | 10A | 3.75A | 3A | 1.88A | 0.94A |
| Output Voltage | 5 | 12 | 15 | 24 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single |
| Dimensions | PCB: 87 x 52 x 29.5, Screw terminal: 109 x 52 x 33.5 | PCB: 87 x 52 x 29.5, Screw terminal: 109 x 52 x 33.5 | PCB: 87 x 52 x 29.5, Screw terminal: 109 x 52 x 33.5 | PCB: 87 x 52 x 29.5, Screw terminal: 109 x 52 x 33.5 | PCB: 87 x 52 x 29.5, Screw terminal: 109 x 52 x 33.5 |
| Working Temperature | -30 - +80°C | ||||
| Safety Standards | IEC60601-1, EN60601-1,UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; EAC TP TC 004,Design refer to EN60335-1(by request), Primary-Secondary: 2xMOPP, I/P-O/P:4KVAC, I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH | ||||
| EMC Standards | EN55011 (CISPR11), EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 | ||||
