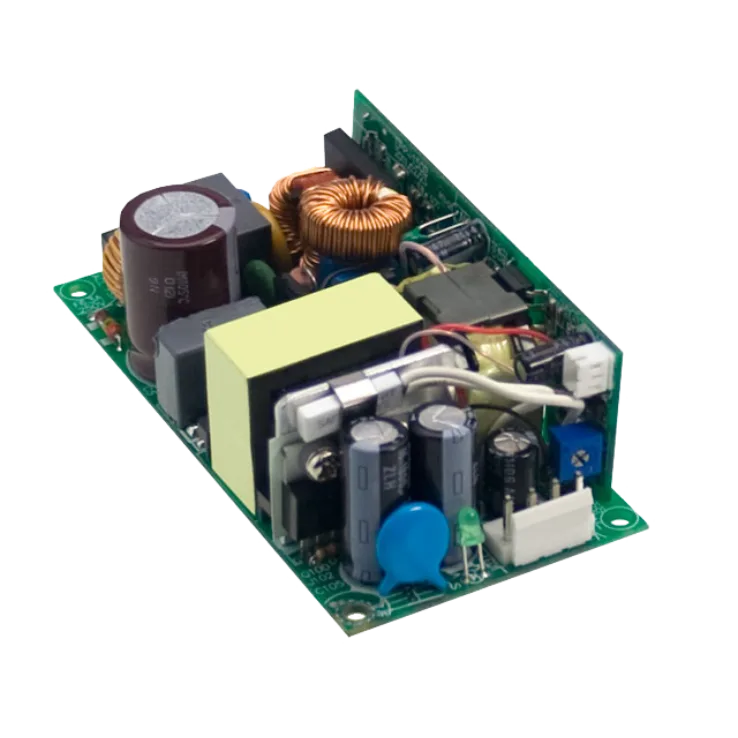

Mean Well EPP-100 Series Open Frame Power Supplies 100W

Download Datasheet
Models:
  • EPP-100-12
  • EPP-100-48
  • EPP-100-27
  • EPP-100-24
  • EPP-100-15
Manufacturer: Mean Well
Type: Open Frame Power Supplies

EPP-100 Series Features:

No load power consumption <0.5W

Built-in active PFC function

Protections: Short circuit/Overload/Over voltage/Over temperature

  • 4" x 2" compact size
  • Universal AC input/Full range
  • High efficiency up to 92.5%
  • 75W free air convection, 100W with 20CFM forced air
  • LED indicator for power on
  • Built-in 12V/0.3A auxiliary output
  • 3 years warranty
Wattage 100 100 100 100 100
Input Voltage 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC 90~264VAC, 127VDC~370VDC
Output Current 0~8.5 0~2.1 0~3.71 0~4.2 0~6.67
Output Voltage 12 48 24 24 0
Output Voltage Options Single Single Single Single Single
DC output adjustment 11.76~12.6 47.04~50.4 26.46~28.35 23.52~25.2 14.7~15.75
Dimensions 101.6x 50.8x 29 101.6x 50.8x 29 101.6x 50.8x 29 101.6x 50.8x 29 101.6x 50.8x 29
Working Temperature -30~+70B0C (Refer to "Derating Curve")
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22), EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, heavy industry level, criteria A
