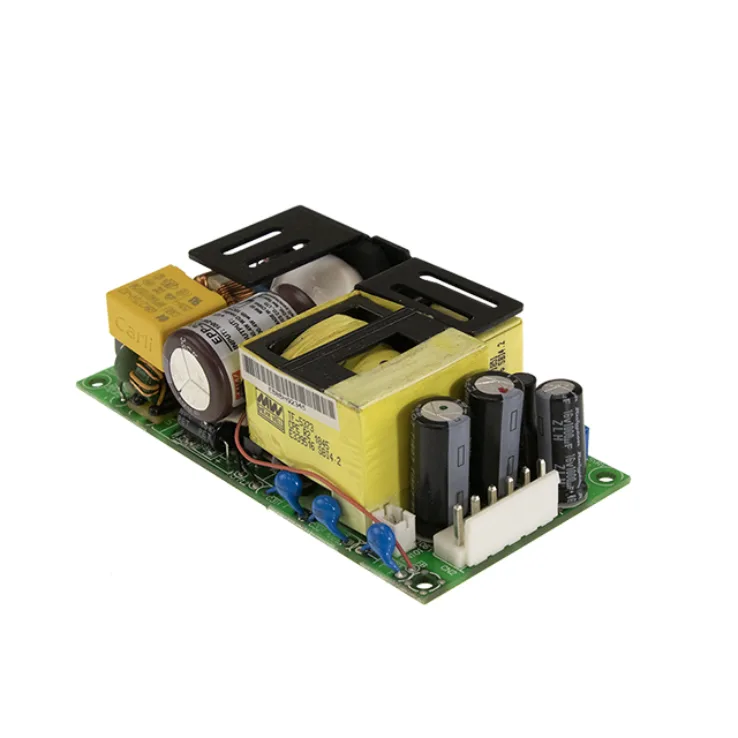

Mean Well EPP-200 Series Open Frame Power Supplies 200.4–202.5W

Download Datasheet
Models:
  • EPP-200-12
  • EPP-200-15
  • EPP-200-24
  • EPP-200-27
  • EPP-200-48
Manufacturer: Mean Well
Type: Open Frame Power Supplies

EPP-200 Series Features:

No load power consumption <0.5W

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • 4"x2" miniature size
  • High efficiency up to 94%
  • Universal AC input / Full range
  • Class II (without FG) installations
  • Built-in active PFC function
  • EMI Class B for both class I (with FG) and Class II (without FG) configuration
  • Built-in 12V/0.5A FAN supply
  • Cooling by free air convection
  • LED indicator for power on
  • 3 years warranty
Wattage 200.4 201 201.6 202.5 201.6
Input Voltage 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC
Output Current 16.7A 13.4A 8.4A 7.5A 4.2A
Output Voltage 12 15 24 27 48
Output Voltage Options Single Single Single Single Single
DC output adjustment 11.4~12.6 14.3~15.8 22.8~25.2 25.6~28.4 45.6~50.4
Dimensions 101.6x 50.8x 29 101.6x 50.8x 29 101.6x 50.8x 29 101.6x 50.8x 29 101.6x 50.8x 29
Working Temperature -30~+70°C
Safety Standards UL60950-1, TUV EN60950-1, IEC 60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 Compliance EN61000-4-2,3,4,5,6,8,11 EN55024, EN61000-6-2, heavy industry level, criteria A
