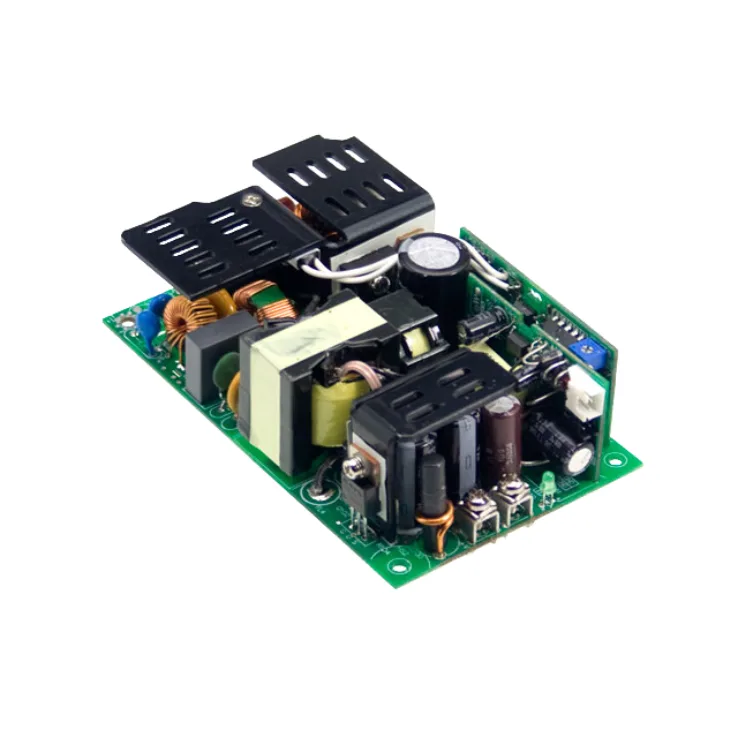

MEAN WELL EPP-300 Series Open Frame Power Supplies 300W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Open Frame Power Supplies |
EPP-300 Series Features:
Universal AC input/Full range
Built-in active PFC function
Protections: Short circuit/Overload/Over voltage/Over temperature
- Built-in 12V/0.5A auxiliary output
- 5" x 3" compact size
- Withstand 300VAC surge input for 5 seconds
- Free air convection for 200W and 300W with 20.5CFM forced air
- With power good and fail signal output
- Built-in remote sense function
- No load power consumption under 0.5W by PS-ON control
- Standby 5V@1A with fan @ 0.6A without fan
- 3 years warranty
| Wattage | 300 | 300 | 300 | 300 | 300 |
|---|---|---|---|---|---|
| Input Voltage | 90~264VAC, 127VDC~370VDC | 90~264VAC, 127VDC~370VDC | 90~264VAC, 127VDC~370VDC | 90~264VAC, 127VDC~370VDC | 90~264VAC, 127VDC~370VDC |
| Output Current | 0~25 | 0~20 | 0~12.5 | 0~11.12 | 0~6.25 |
| Output Voltage | 12 | 15 | 24 | 27 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single |
| DC output adjustment | 11.4~12.6 | 14.25~15.75 | 22.8~25.2 | 25.65~28.35 | 45.6~50.4 |
| Dimensions | 127x 76.2x 35 | 127x 76.2x 35 | 127x 76.2x 35 | 127x 76.2x 35 | 127x 76.2x 35 |
| Working Temperature | -30~+70°C (Refer to "Derating Curve") | ||||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | ||||
| EMC Standards | Compliance to EN55011 (CISPR11), EN55022 (CISPR22), Conduction: Class B, Radiation Class A: EN61000-3-2,-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN60601-1-2, criteria A | ||||
