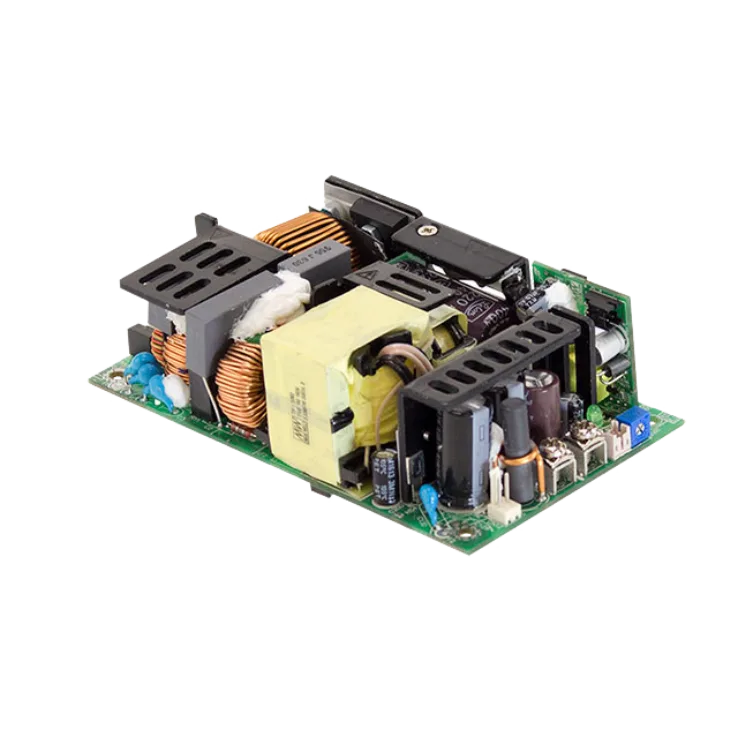

MEAN WELL EPP-400 Series Open Frame Power Supplies 399.6–403.2W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Open Frame Power Supplies |
EPP-400 Series Features:
5"x3" miniature size
250W Convection, 400W force air
Protections: Short circuit / Overload / Over voltage / Over temperature
Other Features:
- Universal input 80-264VAC
- Built-in active PFC function
- EMI Class B for both class I (with FG) and Class II (without FG) configuration
- No load power consumption <0.5W
- Built-in 12V/0.5A FAN supply standby 5V @ 1A with fan, 0.6A without fan
- Built-in remote sense function
- Output 18V available (optional)
- 3 years warranty
| Wattage | 399.6 | 400.5 | 401.4 | 400.8 | 402.3 | 403.2 | 403.2 |
|---|---|---|---|---|---|---|---|
| Input Voltage | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC |
| Output Current | 0~33.3 | 0~26.7 | 0~22.3 | 0~16.7 | 0~14.9 | 0~11.2 | 0~8.4 |
| Output Voltage | 12 | 15 | 18 | 24 | 27 | 36 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single |
| DC output adjustment | 11.4-12.6V | 14.3-15.8V | 17.1-18.9V | 22.8-25.2V | 25.6-28.4V | 34.2-37.8V | 45.6-50.4V |
| Dimensions | 127 x 76.2 x 35 | 127 x 76.2 x 35 | 127 x 76.2 x 35 | 127 x 76.2 x 35 | 127 x 76.2 x 35 | 127 x 76.2 x 35 | 127 x 76.2 x 35 |
| Working Temperature | -30~+70°C | ||||||
| Safety Standards | UL60950-1, TUV EN60950-1, IEC60950-1 approved | ||||||
| EMC Standards | EN55022 (CISPR22), EN61000-3-2,3 Compliance to EN55024, EN60601-1-2, EN61000-4-2,3,4,5,6,8,11 | ||||||
