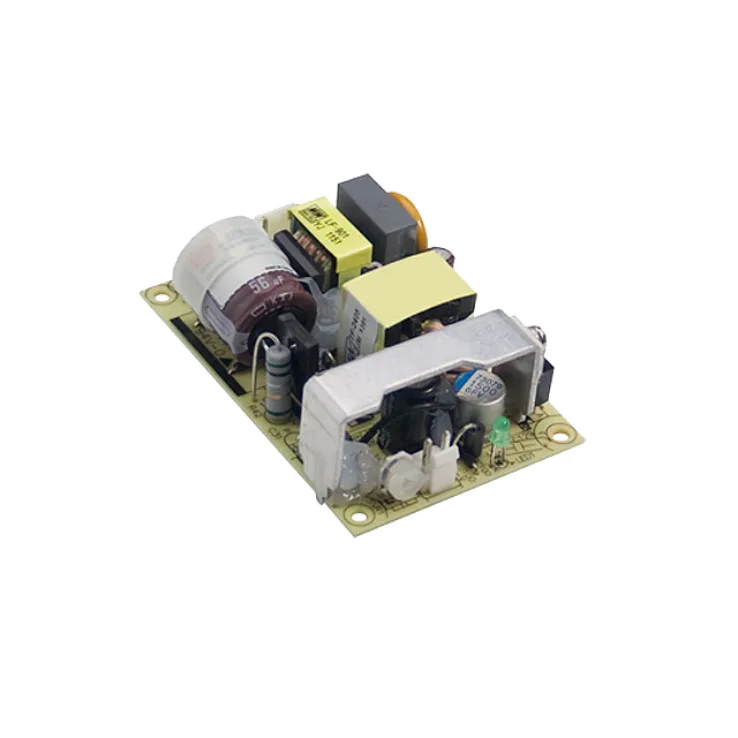

MEAN WELL EPS-25 Series Open Frame Power Supplies 16.5–25.5W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Open Frame Power Supplies |
EPS-25 Series Features:
Universal AC input / Full range
No load power consumption<0.3W
Protections: Short circuit / Overload / Over voltage
Other features:
- Cooling by free air convection
- 3" 2" compact size
- High efficiency up to 90%
- LED indicator for power on
- 3 years warranty
| Wattage | 16.5 | 25 | 25.5 | 25 | 25 | 25 | 25 | 25 | 25 |
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC | 85~264VAC 120~370VDC |
| Output Current | 0~5.5 | 0~5.5 | 0~3.74 | 0~2.34 | 0~1.87 | 0~1.17 | 0~1.05 | 0~0.78 | 0~0.59 |
| Output Voltage | 3.3 | 5 | 7.5 | 12 | 15 | 24 | 27 | 36 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single |
| DC output adjustment | 3.1~3.6 | 4.75~5.5 | 7.13~8.25 | 10.8~13.5 | 13.5~16.5 | 21.6~27 | 24.3~29.7 | 32.4~39.6 | 43.2~52.8 |
| Dimensions | 76.2x 50.8x 24 | 76.2x 50.8x 24 | 76.2x 50.8x 24 | 76.2x 50.8x 24 | 76.2x 50.8x 24 | 76.2x 50.8x 24 | 76.2x 50.8x 24 | 76.2x 50.8x 24 | 76.2x 50.8x 24 |
| Working Temperature | -30~+70°C | ||||||||
| Safety Standards | UL60950-1, TUV EN60950-1 approved | ||||||||
| EMC Standards | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A | ||||||||
