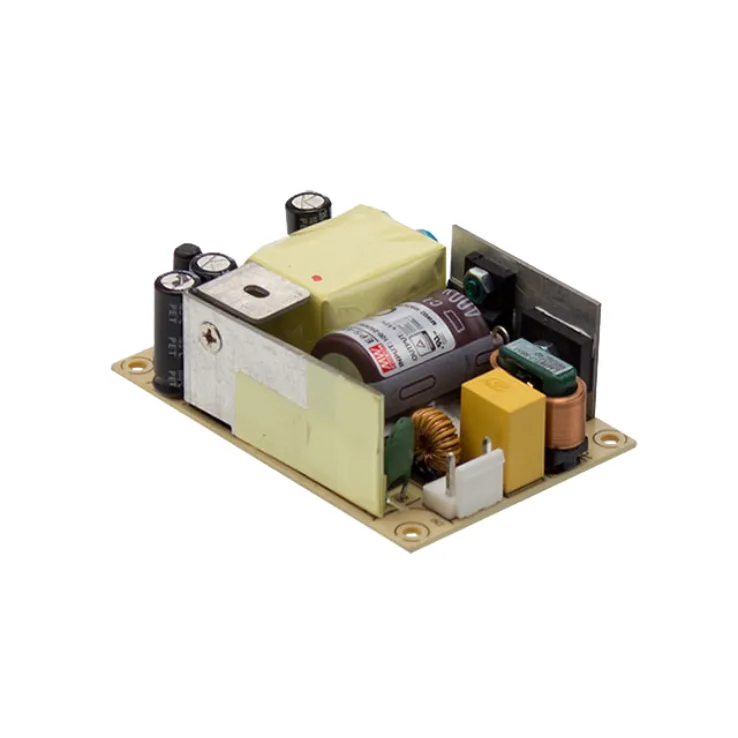

Mean Well EPS-45 Series Open Frame Power Supplies 26.4–45.6W

Download Datasheet
Models:
  • EPS-45-3.3
  • EPS-45-5
  • EPS-45-7.5
  • EPS-45-12
  • EPS-45-15
  • EPS-45-24
  • EPS-45-36
  • EPS-45-48
  • EPS-45-3.3-C
  • EPS-45-5-C
  • EPS-45-7.5-C
  • EPS-45-12-C
  • EPS-45-15-C
  • EPS-45-24-C
  • EPS-45-36-C
  • EPS-45-48-C
  • EPS-45S-3.3
  • EPS-45S-5
  • EPS-45S-7.5
  • EPS-45S-12
  • EPS-45S-15
  • EPS-45S-24
  • EPS-45S-48
Manufacturer: Mean Well
Type: Open Frame Power Supplies

EPS-45 Series Features:

No load power consumption <0.3

Protections: Short circuit / Overload / Over voltage

Other features:

  • 4"x2"x 0.95 compact size
  • High efficiency up to 90%
  • Universal AC input / Full range
  • Case available
  • Cooling by free air convection
  • LED indicator for power on
  • 3 years warranty
Wattage 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 45 26.4 40 40.5 45.6 45 45.6 45.1
Input Voltage 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC
Output Current 0~8/9 0~8/9 0~5.4/6 0~3.75/4.2 0~3/3.3 0~1.9~2.1 0~1.25.1.4 0~1/1.1 0~8 0~8 0~5.4 0~3.75 0~3 0~1.9 0~1.25 0~1 8A 8A 5.4A 3.8A 3A 1.9A 0.94A
Output Voltage 3.3 0 7.5 12 15 24 36 48 3.3 5 7.5 12 15 24 36 48 3.3 5 7.5 12 15 24 48
Output Voltage Options Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single Single
DC output adjustment +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage 3.1~3.6V 4.75~5.5V 7.13~8.25 10.8~13.5V 13.5~16.5V 21.6~27V 32.4~39.6V 43.2~52.8V 3.1-3.6V 4.7-5.5V 7.12-8.3V 11.4-13.2V 13.5-16.5V 22.8-27.6V 45.6-52.8
Dimensions 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 101.6x50.8x29 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24 76.2x 50.8x 24
Working Temperature 0~35B0C@100%, -10B0C@80%,60B0C@60% load 0~40B0C@100%, -10B0C@80%,60B0C@60% load -30~+70B0C 0~35B0C@100%, -10B0C@80%,60B0C@60% load 0~40B0C@100%, -10B0C@80%,60B0C@60% load 0~35B0C@100%, -10B0C@80%,60B0C@60% load 0~40B0C@100%, -10B0C@80%,60B0C@60% load 0~35B0C@100%, -10B0C@80%,60B0C@60% load 0~40B0C@100%, -10B0C@80%,60B0C@60% load -30~+70B0C 0~35B0C@100%, -10B0C@80%,60B0C@60% load 0~40B0C@100%, -10B0C@80%,60B0C@60% load 0~35B0C@100%, -10B0C@80%,60B0C@60% load -30~+70B0C (Refer to "Derating Curve")
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11 Compliance to EN55022(CISPR22) Class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN55024, Heavy industry level criteria A
