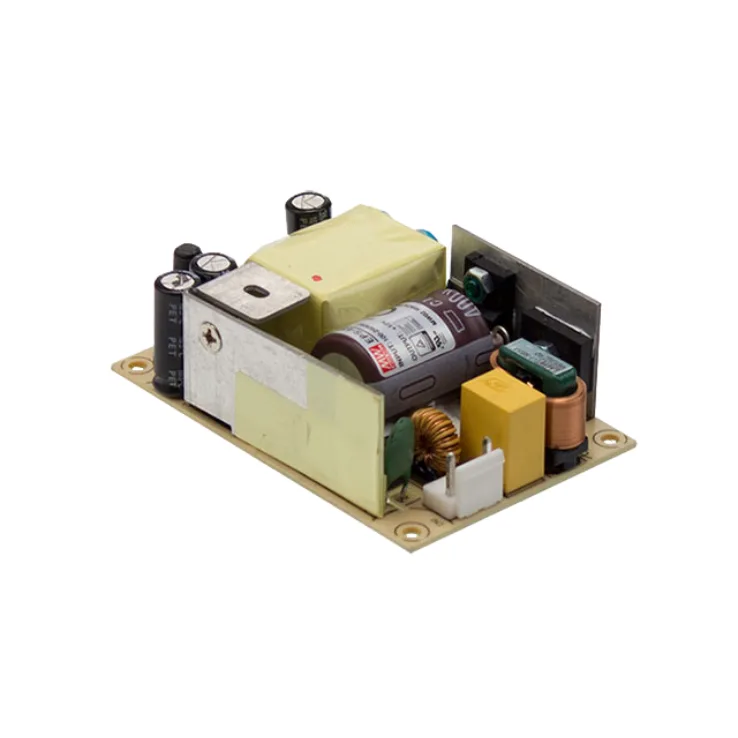

Mean Well EPS-65S Series Open Frame Power Supplies 33–65.3W

Download Datasheet
Models:
  • EPS-65S-3.3
  • EPS-65S-5
  • EPS-65S-7.5
  • EPS-65S-12
  • EPS-65S-15
  • EPS-65S-24
  • EPS-65S-48
Manufacturer: Mean Well
Type: Open Frame Power Supplies

EPS-65S Series Features:

No load power consumption <0.1

Protections: Short circuit / Overload / Over voltage

Other features:

  • 3"x2" compact size
  • High efficiency up to 91%
  • Universal AC input / Full range
  • Cooling by free air convection
  • LED indicator for power on
  • 3 years warranty
Wattage 33 50 60 65 65.1 65 65.3
Input Voltage 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC
Output Current 10A 10A 8A 5.42A 4.34A 2.71A 1.36A
Output Voltage 3.3V 5V 7.5V 12V 15V 24V 48V
Dimensions 76.2*50.8*24mm 76.2*50.8*24mm 76.2*50.8*24mm 76.2*50.8*24mm 76.2*50.8*24mm 76.2*50.8*24mm 76.2*50.8*24mm
Working Temperature -30~+70°C
Safety Standards UL62368-1, TUV EN62368-1, EN60335-1 EAC TP TC 004 approved
EMC Standards Compliance to EN55032(CISPR32) Class B, EN61000-3-2-3, EAC TP TC 020
