Models: |
|
Manufacturer: | MEAN WELL |

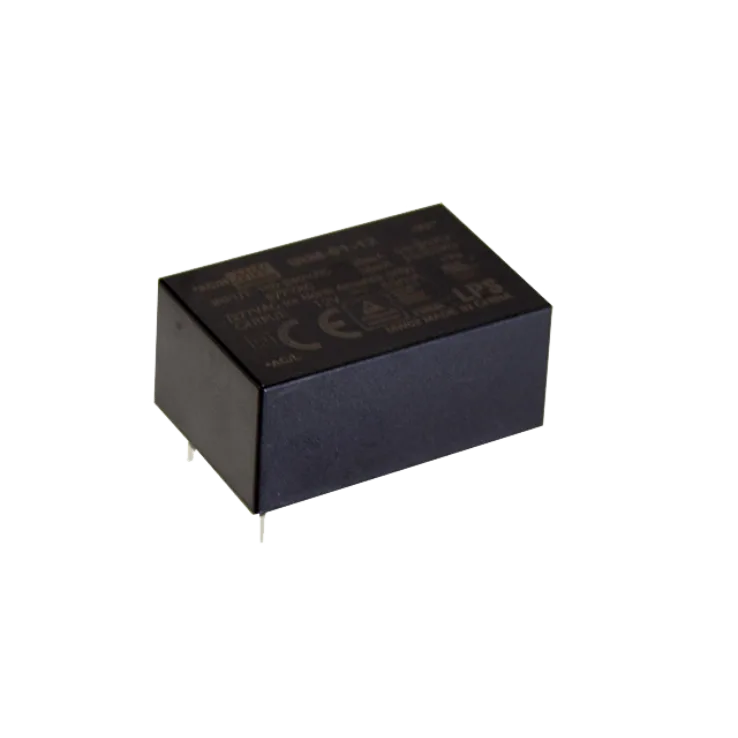

Type: | Open Frame Power Supplies |
Universal AC input / Full range
Protections: Short circuit/ Over Current/ Over voltage
Other features:
Wattage | 3 | 3 | 4 | 3 | 3 |
Input Voltage | 85-305VAC | 85-305VAC | 85-305VAC | 85-305VAC | 85-305VAC |
Output Current | 600mA | 333mA | 250mA | 200mA | 125mA |
Output Voltage | 5 | 9 | 12 | 15 | 24 |
Output Voltage Options | Single | Single | Single | Single | Single |
Dimensions | 37x 24x15 | 37x 24x15 | 37x 24x15 | 37x 24x15 | 37x 24x15 |
Working Temperature | -30-+85°C | ||||
Safety Standards | UL60950-1, TUV EN60950-1 Approved, Meet IEC60601-1, EN60335-1, EN61558-1/-2-16 | ||||
EMC Standards | Compliance to EN55022 (CISPR22) Class B , EN61000-3-2-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN55024, heavy industry level(surge L-N : 1KV), criteria A. |
