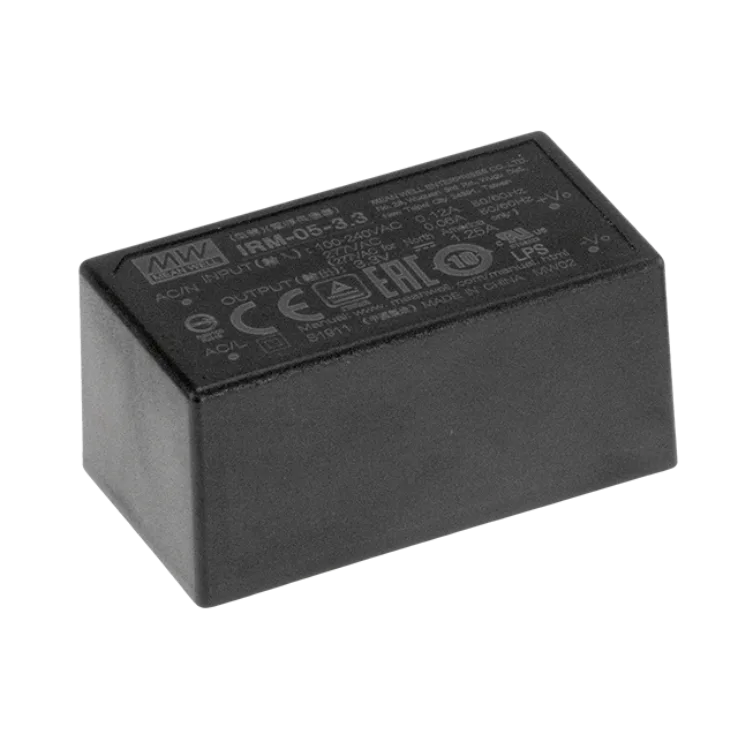

Mean Well IRM-20 Series Open Frame Power Supplies 15–22W

Download Datasheet
Models:
  • IRM-20-3.3
  • IRM-20-5
  • IRM-20-12
  • IRM-20-15
  • IRM-20-24
Manufacturer: Mean Well
Type: Open Frame Power Supplies

IRM-20 Series Features:

No load power consumption <0.1W

Compact size

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input/ full range
  • Cooling by free air convection
  • Isolation class II
  • 100% full load burn in test
  • High reliability
  • 3 years warranty
Wattage 15 20 20 21 22
Input Voltage 90~305VAC, 120~370VDC 90~305VAC, 120~370VDC 90~305VAC, 120~370VDC 90~305VAC, 120~370VDC 90~305VAC, 120~370VDC
Output Current 0~5 0~4 0~1.8 0~1.4 0~0.9
Output Voltage 3.3 5 12 15 24
Output Voltage Options Single Single Single Single Single
Dimensions 52.4x 27.2x 24 52.4x 27.2x 24 52.4x 27.2x 24 52.4x 27.2x 24 52.4x 27.2x 24
Working Temperature -40~+85°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to to EN55022 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A
