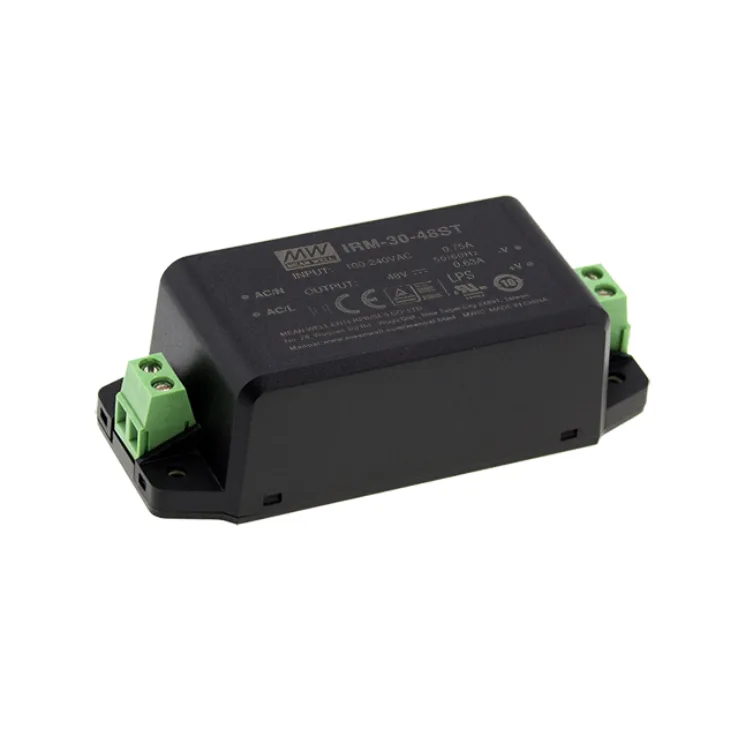

Mean Well IRM-30 ST Series Open Frame Power Supplies 30–31.2W

Download Datasheet
Models:
  • IRM-30-5ST
  • IRM-30-12ST
  • IRM-30-15ST
  • IRM-30-24ST
  • IRM-30-48ST
Manufacturer: Mean Well
Type: Open Frame Power Supplies

IRM-30 ST Series Features:

Fully encapsulated with IP67 level

Protections: Short circuit/ Over Current/ Over voltage/ Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full Range
  • High efficiency up to 90%
  • Cooling by free air convection
  • Built-in active PFC function
  • Built-in 3 in 1 dimming function (0-10Vdc or PWM signal or resistance)
  • Fully isolated plastic case
  • Class II power unit, no FG
  • Class 2 power unit
  • Suitable for dry, damp, wet location
  • No load power consumption <0.5W
  • 5 years warranty
Wattage 30 30 30 31.2 30.2
Input Voltage 90~305VAC 90~305VAC 90~305VAC 90~305VAC 90~305VAC
Output Current 6A 2.5A 2A 1.3A 0.63A
Output Voltage 5 12 15 24 48
Output Voltage Options Single Single Single Single Single
Dimensions 69.5x 39x 24 69.5x 39x 24 69.5x 39x 24 69.5x 39x 24 69.5x 39x 24
Working Temperature 1` -30-+70B0C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22) Class B , EN61000-3-2-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN55024, heavy industry level(surge L-N : 1KV), criteria A.
