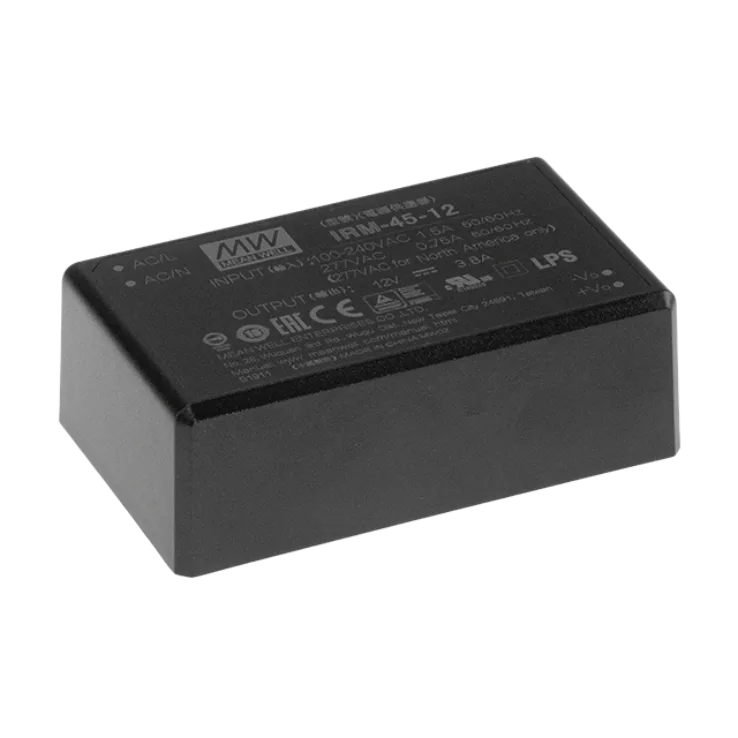

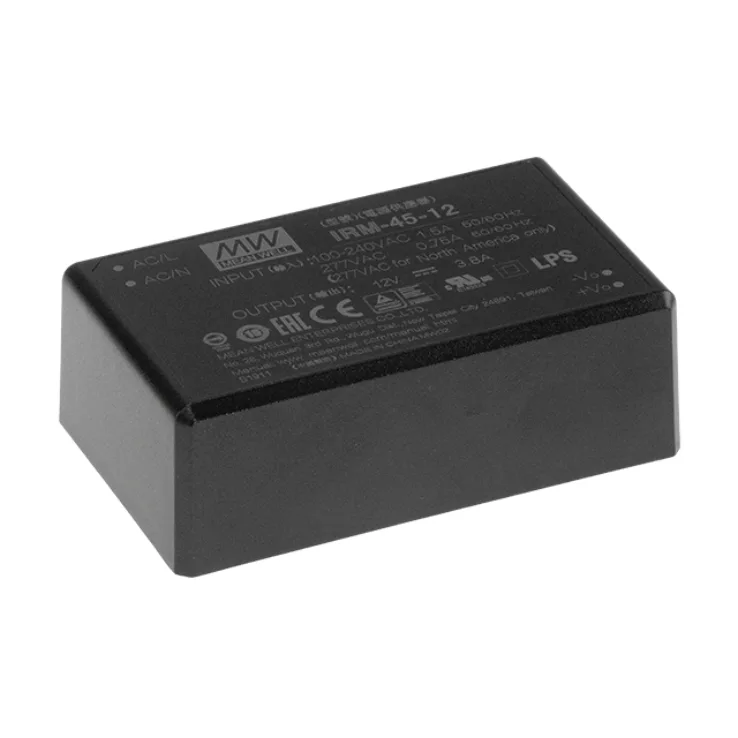

Mean Well IRM-45 Series Open Frame Power Supplies 40–45.6W

Download Datasheet
Models:
  • IRM-45-5
  • IRM-45-12
  • IRM-45-15
  • IRM-45-24
  • IRM-45-48
Manufacturer: Mean Well
Type: Open Frame Power Supplies

IRM-45 Series Features:

No load power consumption <0.1W

Compact size

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Universal AC input/ full range
  • Cooling by free air convection
  • Isolation class II
  • 100% full load burn in test
  • Pass LPS (Except for 5V)
  • High reliability
  • 3 years warranty
Wattage 40 45.6 45 45.6 45.12
Input Voltage 90~305VAC 90~305VAC 90~305VAC 90~305VAC 90~305VAC
Output Current 8A 3.8A 3A 1.9A 0.94A
Output Voltage 5 12 15 24 48
Output Voltage Options Single Single Single Single Single
Dimensions 87x 52x 29.5 87x 52x 29.5 87x 52x 29.5 87x 52x 29.5 87x 52x 29.5
Working Temperature -30-+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22) Class B , EN61000-3-2-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN55024, heavy industry level(surge L-N : 1KV), criteria A.
