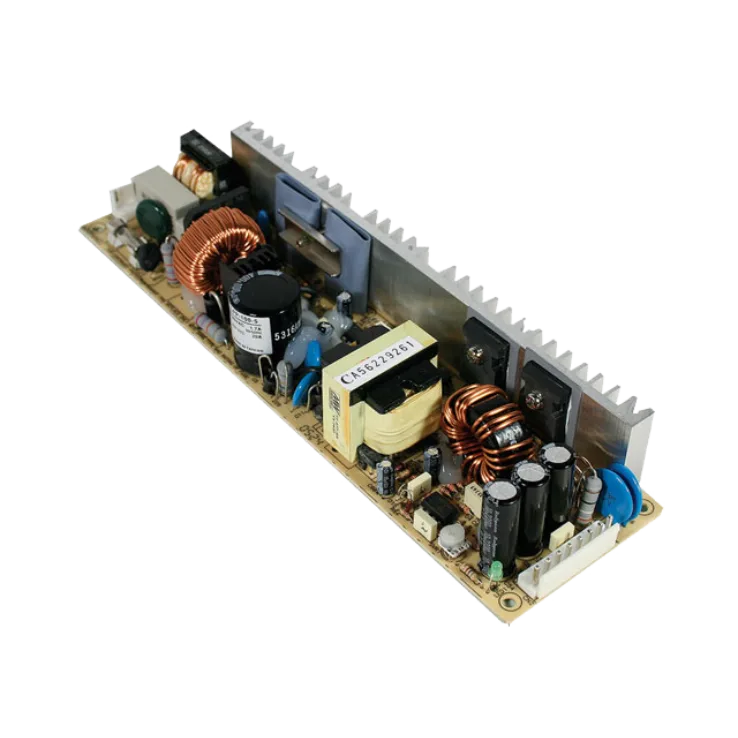

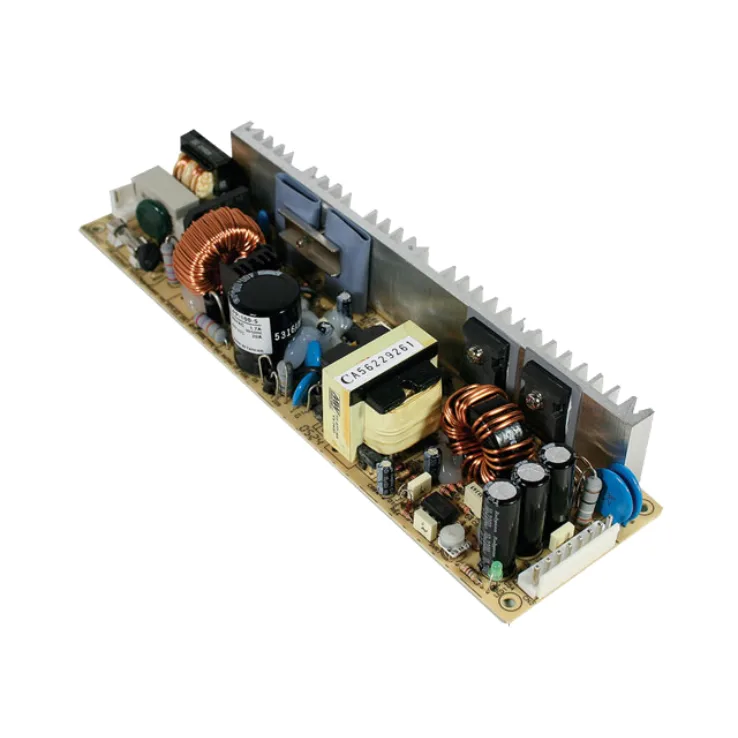

Mean Well LPP-100 Series Open Frame Power Supplies 100W

Download Datasheet
Models:
  • LPP-100-3.3
  • LPP-100-5
  • LPP-100-7.5
  • LPP-100-12
  • LPP-100-13.5
  • LPP-100-15
  • LPP-100-24
  • LPP-100-27
  • LPP-100-48
Manufacturer: Mean Well
Type: Open Frame Power Supplies

LPP-100 Series Features:

100% full load burn-in test

Protections: Short circuit / Over load / Over Voltage

Other features:

  • Universal AC input / Full range
  • Built-in active PFC function
  • Cooling by free air convection
  • 3 years warranty
Wattage 100 100 100 100 100 100 100 100 100
Input Voltage 85~264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 90~264VAC 85-264VAC 85-264VAC
Output Current 0~20 0~20 0~13.5 0~12.5 0~7.5 0~6.7 0~4.2 0~3.8 0~2.1
Output Voltage 3.3 5 7.5 12 13.5 15 24 27 48
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage +- 10% rated output voltage -5%~+10% rated output voltage
Dimensions 222 x 62 x 32 222 x 62 x 32 222 x 62 x 32 222 x 62 x 32 222 x 62 x 32 222 x 62 x 32 222 x 62 x 32 222 x 62 x 32 222 x 62 x 32
Working Temperature -20~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11
