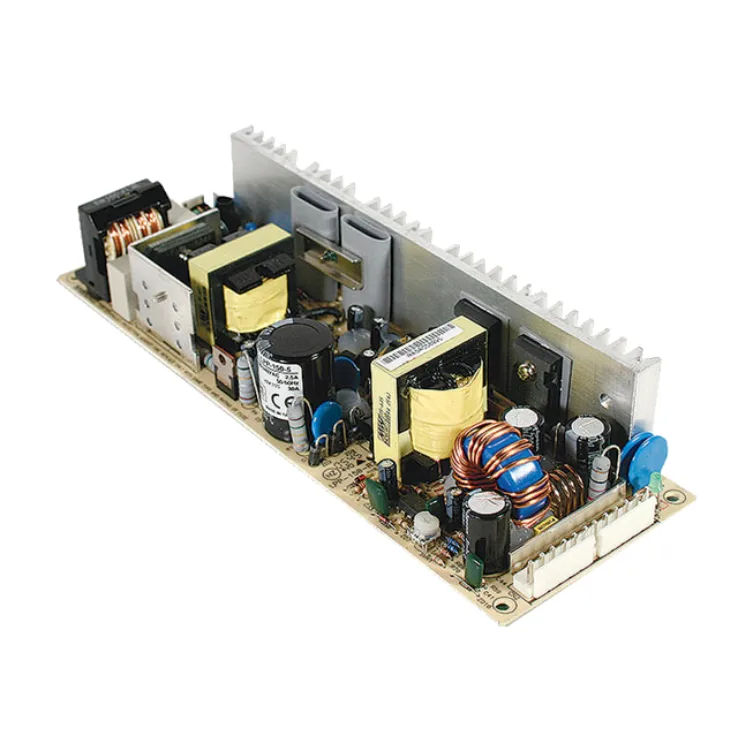

Mean Well LPP-150 Series Open Frame Power Supplies 150W

Download Datasheet
Models:
  • LPP-150-5
  • LPP-150-7.5
  • LPP-150-12
  • LPP-150-13.5
  • LPP-150-15
  • LPP-150-24
  • LPP-150-27
  • LPP-150-48
  • LPP-150-3.3
Manufacturer: Mean Well
Type: Open Frame Power Supplies

LPP-150 Series Features:

100% full load burn-in test

Protections: Short circuit / Over load / Over Voltage

Other features:

  • Universal AC input / Full range
  • Built-in active PFC function
  • Cooling by free air convection
  • Optional over temperature
  • 3 years warranty
Wattage 150 150 150 150 150 150 150 150 150
Input Voltage 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC 85-264VAC
Output Current 0~30 0~20 0~12.5 0~11.2 0~10 0~6.3 0~5.6 0~3.2 0~30
Output Voltage 5 7.5 12 13.5 15 24 27 48 3.3
Output Voltage Options Single Single Single Single Single Single Single Single Single
DC output adjustment -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage
Dimensions 222 x 75 x 41 222 x 75 x 41 222 x 75 x 41 222 x 75 x 41 222 x 75 x 41 222 x 75 x 41 222 x 75 x 41 222 x 75 x 41 222 x 75 x 41
Working Temperature -30~+70B0C -25~+70B0C -30~+70B0C
Safety Standards UL60950-1, TUV EN60950-1 approved UL60601-1, TUV EN60601-1
EMC Standards EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11
