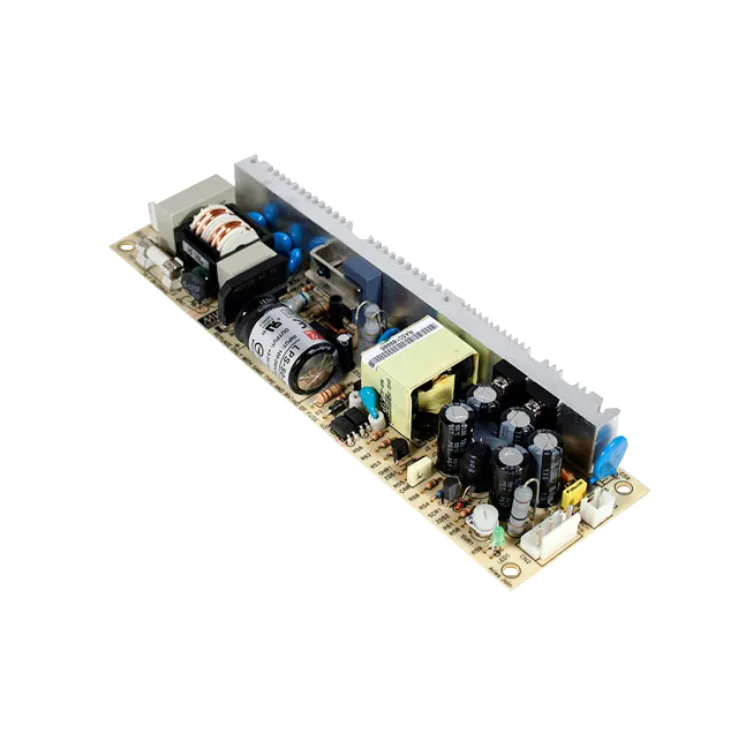

Mean Well LPS-50 Series Open Frame Power Supplies 50W

Download Datasheet
Models:
  • LPS-50-3.3
  • LPS-50-5
  • LPS-50-12
  • LPS-50-15
  • LPS-50-24
  • LPS-50-48
Manufacturer: Mean Well
Type: Open Frame Power Supplies

LPS-50 Series Features:

100% full load burn-in test

Protections: Short circuit / Over load / Over Voltage

Other features:

  • Universal AC input / Full range
  • Built-in remote ON/OFF control
  • Cooling by free air convection
  • Remote control function for CH1
  • 2 years warranty
Wattage 50 50 50 50 50 50
Input Voltage 90~264VAC, 127~370VDC 90~264VAC 90~264VAC 90~264VAC 90~264VAC 90~264VAC
Output Current 0~10.0 0~10 0~4.2 0~3.4 0~2.1 0~1.1
Output Voltage 3.3 5 12 15 24 48
Output Voltage Options Single Single Single Single Single Single
DC output adjustment +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage
Dimensions 195 x 55 x 23 195 x 55 x 23 195 x 55 x 23 195 x 55 x 23 195 x 55 x 23 195 x 55 x 23
Working Temperature -20~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11 EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11,EN61204-3 , EN61000-6-2 heavy industry level
