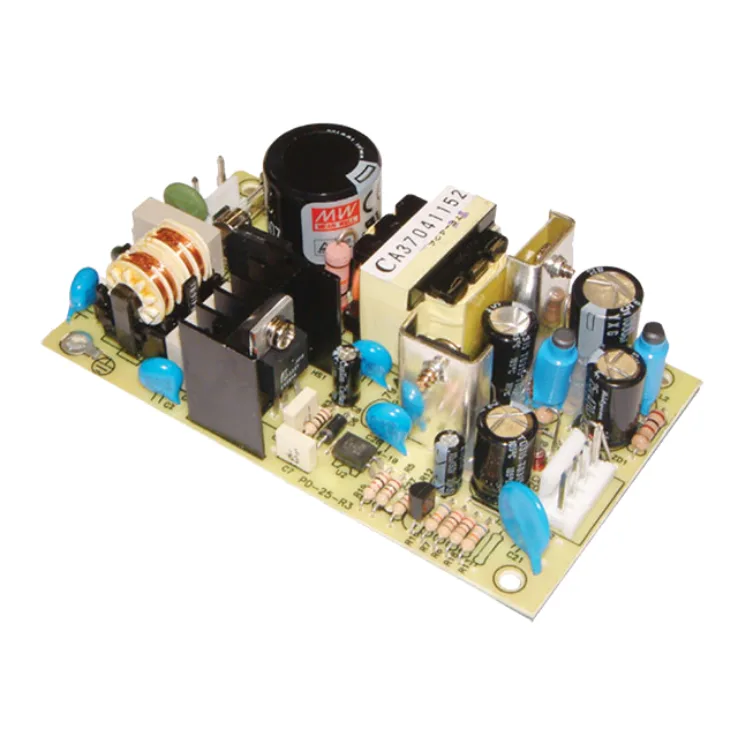

Mean Well PD-25 Series Open Frame Power Supplies 25W

Download Datasheet
Models:
  • PD-25A
  • PD-25B
  • PD-2503
  • PD-2505
  • PD-2512
  • PD-2515
Manufacturer: Mean Well
Type: Open Frame Power Supplies

PD-25 Series Features:

Low leakage current <0.5mA

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • Universal AC input/ Full range
  • Cooling by free air convection
  • fixed switching frequency at 67 kHz
  • 100% full load burn-in test
  • Low cost, high reliability
  • 2 years warranty
Wattage 25 25 25 25 25 25
Input Voltage 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC 85-264VAC, 120-370VDC
Output Current 0.2~2.5, 0.1~1.5 0.2~2.0, 0.1~1.0 0.2~5.0, 0.1~4.0 0.1~3.0, 0.1~2.5 0.1~1.2, 0.1~1.2 0.1~1.0, 0.1~1.0
Output Voltage 15, 12 5, 24 3.3, 5 5, -5 12, -12 15, -15
Output Voltage Options Dual Dual Dual Dual Dual Dual
DC output adjustment N/A N/A N/A N/A N/A N/A
Dimensions 107 x 61 x 28 107 x 61 x 28 107 x 61 x 28 107 x 61 x 28 107 x 61 x 28 107 x 61 x 28
Working Temperature -30~+50°C (refer to output derating curve)
Safety Standards UL60950-1 CB approval by TUV
EMC Standards EN55022 class B, EN61000-3-2, 3, EN61000-4-2, 3, 4, 5, 6, 8, 11
