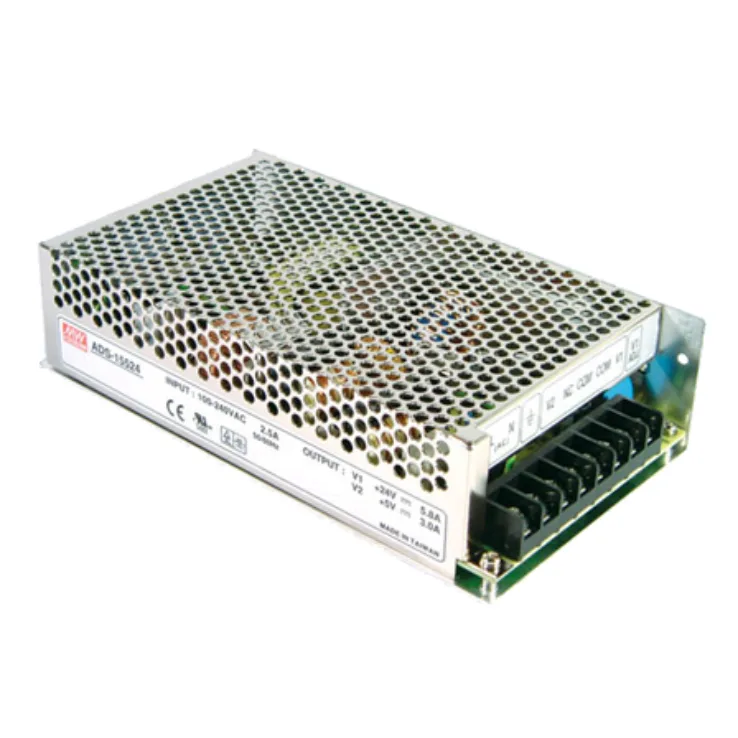

Mean Well AD-155 Series Chargers 155W

Download Datasheet
Models:
  • AD-155A
  • AD-155B
  • AD-155C
Manufacturer: Mean Well
Type: Chargers

AD-155 Series Features:

PF> 0.92 230VAC and full load

Protections: Short circuit / Overload / Over voltage

Other Features:

  • Universal AC input / Full range
  • Battery low protection
  • Cooling by free air convection
  • Fixed switching frequency at 13kHz
  • Approvals: UL / CUL / TUV / CB / CE
  • 100% full load burn-in test
  • 2 years warranty
Wattage 155 155 155
Input Voltage 88~264VAC; 124~370VDC 88~264VAC; 124~370VDC 88~264VAC; 124~370VDC
Output Current 0~11.5, 0~0.50 0~5.50, 0~0.50 00~2.70, 0~0.50
Output Voltage 13.8, 13.3 27.6, 27.1 54, 53.5
Output Voltage Options Dual Dual Dual
DC output adjustment 12V, 24V: B110% 13,8V:12~14.5V; 27.6V: 24~29V 12V, 24V: B110% 13,8V:12~14.5V; 27.6V: 24~29V 12V, 24V: B110% 13,8V:12~14.5V; 27.6V: 24~29V
Dimensions 199 x 110 x 50 199 x 110 x 50 199 x 110 x 50
Working Temperature -10~60B0C with fan: -10~50B0C@100%, without fan: -10~50B0C@ 70%
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11
