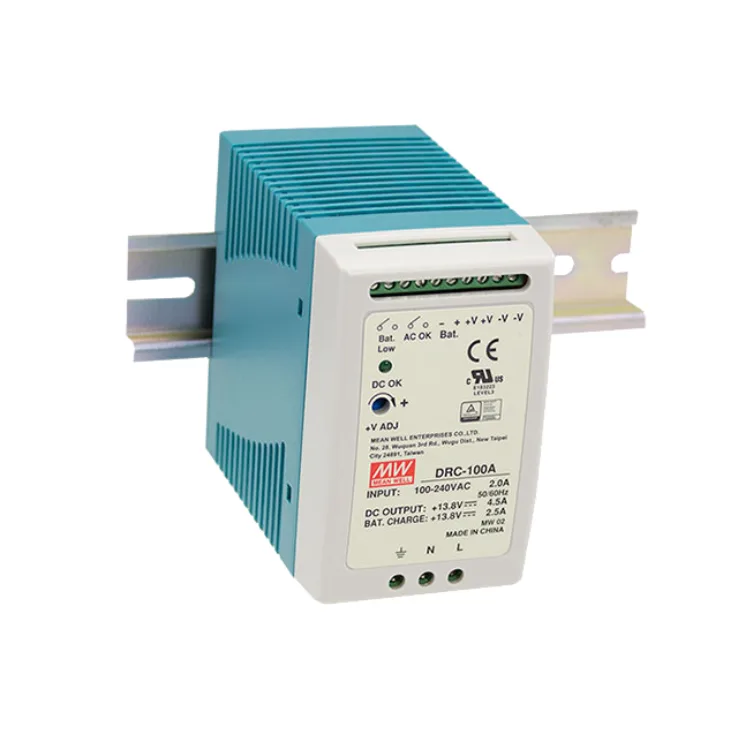

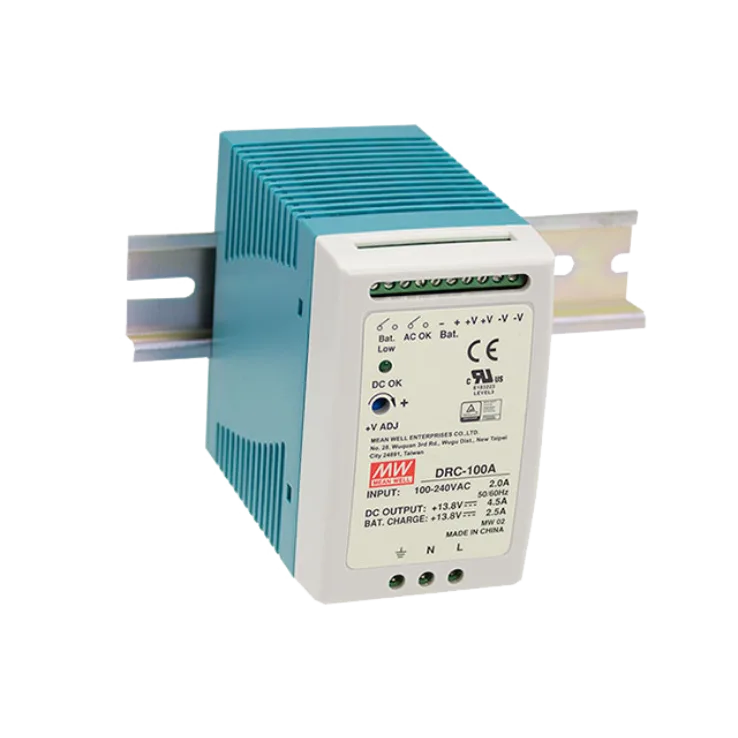

Mean Well DRC-100 Series Chargers 96.6W

Download Datasheet
Models:
  • DRC-100A
  • DRC-100B
Manufacturer: Mean Well
Type: Chargers

DRC-100 Series Features:

Universal AC input / Full range Protections: Short circuit / Overload / Over voltage Battery low protection / Battery polarity protection by fuse Can be installed on DIN Rail TS-35/7.5 or 15 Alarm signal for AC OK and Battery low Cooling by free air convection LED indicator for power on 100% full load burn-in test 3 years warranty

Wattage 96.6 96.6
Input Voltage 90-264VAC 90-264VAC
Output Current 2.5-4.5A 1.25-2.25A
Output Voltage 14 28
Output Voltage Options Single Single
DC output adjustment CH1:12-15V CH1:24-30
Dimensions 55x 90x 100 55x 90x 100
Working Temperature -40-+85°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22), class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61204-3, light industry level, criteria A
