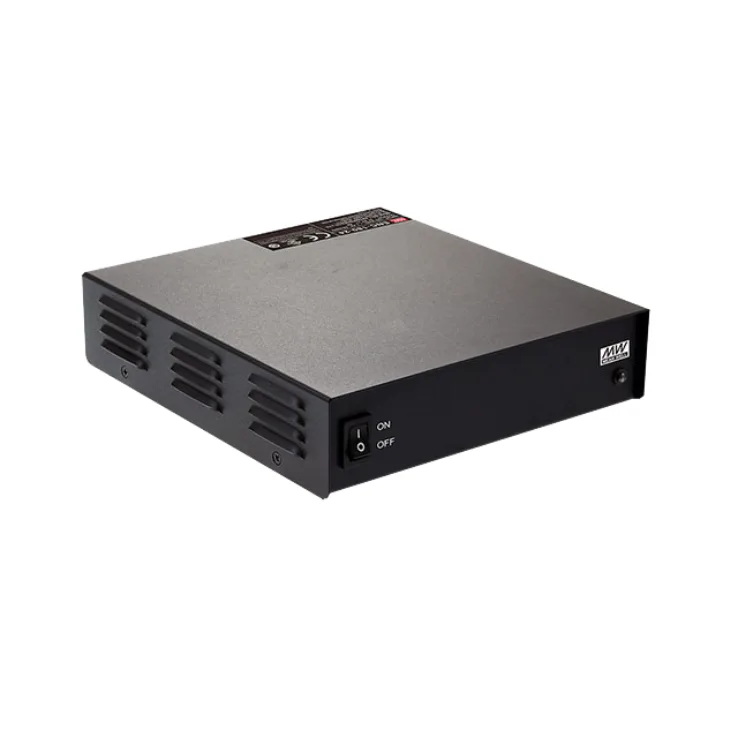

MEAN WELL ENC-360 Series Chargers 345.6W

ENC-360 Series Features:

Charger for lead-acid batteries and Li-ion batteries

Protections: Short circuit / Over voltage / Over temperature / Battery under voltage / Battery over voltage / Battery reverse polarity protection

Other Features:

Spec	ENC-360-12	ENC-360-24	ENC-360-48
Wattage	345.6	345.6	345.6
Input Voltage	90~264VAC	90~264VAC	90~264VAC
Output Current	24	12	6
Output Voltage	14.4	28.8	57.6
Output Voltage Options	Single	Single	Single
DC output adjustment	9-15V	18-30V	36-60V
Dimensions	192x 178x 45.5	192x 178x 45.5	192x 178x 45.5
Working Temperature	-30~+70°C
Safety Standards	IEC60950-1, UL60950-1 approved
EMC Standards	Compliance to EN55032 (CISPR32) class B, EN61000-3-2,-3, FCC PART 15 / CISPR22 class B Compliance to EN61000-4-2,3,4,5,6,8,11
