Mean Well Mean Well logo

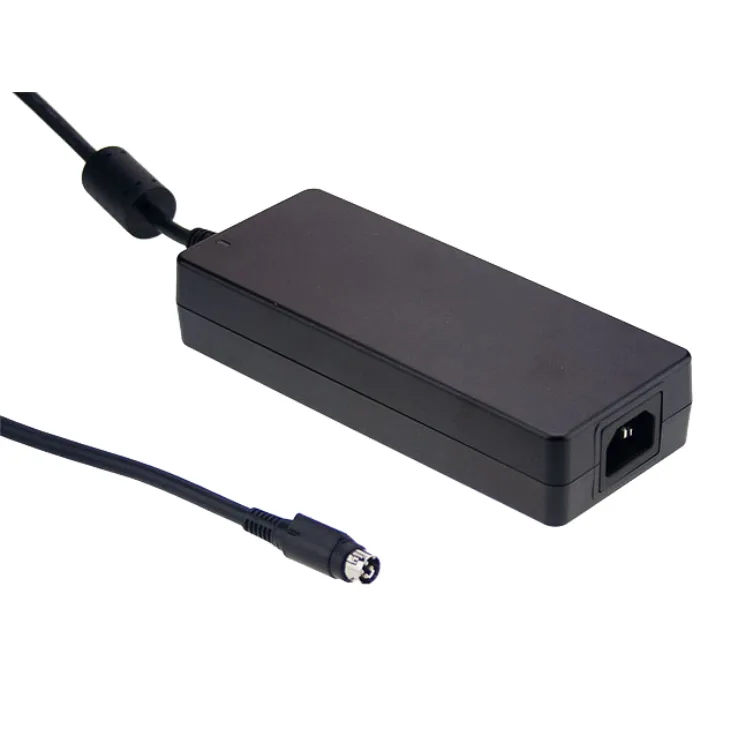

Mean Well GC160A Series Chargers 160W

Download Datasheet
Models:
  • GC160A12-R7B
  • GC160A24-R7B
  • GC160A48-R7B
Manufacturer: Mean Well
Type: Chargers

GC160A Series Features:

No load power consumption <1W

Protections: Short circuit / Overload / Over voltage / Over temp.

Other features:

  • Universal AC input / Full range
  • High efficiency up to 94%
  • Built-in active PFC function, PF>0.94
  • 3 pole AC inlet IEC320-C14
  • Class I power (with earth pin)
  • Fully enclosed plastic case
  • 2 color LED indicator for charging status
  • 2 years warranty
Wattage 160 160 160
Input Voltage 85-264VAC,120-370VDC 85-264VAC,120-370VDC 85-264VAC,120-370VDC
Output Current 10 10 10
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment N/A N/A N/A
Dimensions 175 x 72 x 35 175 x 72 x 35 175 x 72 x 35
Working Temperature -10~+50°C
Safety Standards EN60950-1 approved
EMC Standards EN55022 class B,EN61000-3-2,3 ,EN61000-4-2,3,4,5,6,8,11,FCC part 15 class B
