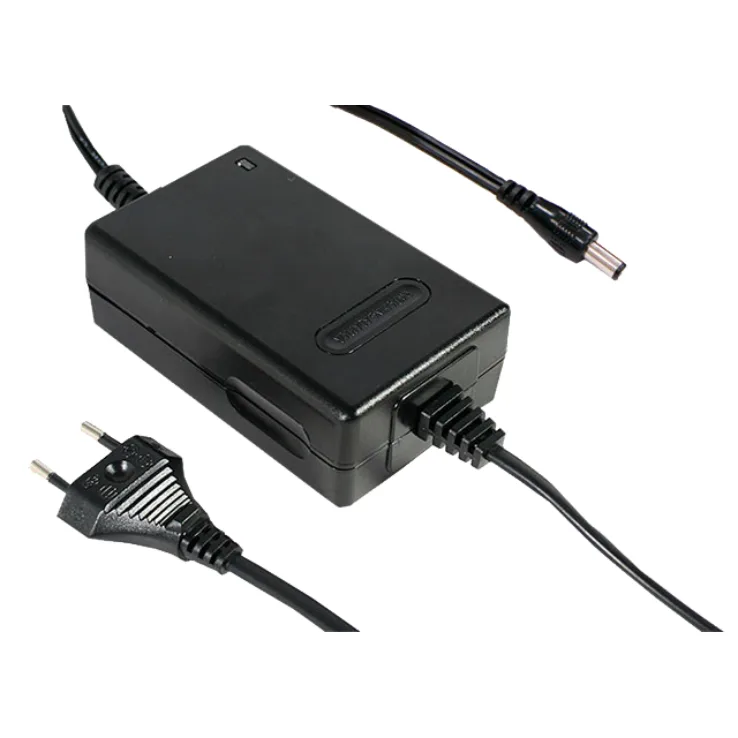

Mean Well GC30E Series Chargers 30W

Download Datasheet
Models:
  • GC30E-0P1J
  • GC30E-1P1J
  • GC30E-2P1J
  • GC30E-4P1J
  • GC30E-5P1J
  • GC30E-6P1J
  • GC30E-11P1J
Manufacturer: Mean Well
Type: Chargers

GC30E Series Features:

No load power consumption < 1W

Protections: Short circuit / Overload / Over voltage / Over temp.

Other features:

  • Universal AC input / Full range
  • Class II Power (without earth pin)
  • Constant current and voltage (CC, CV mode)
  • High reliability
  • Suitable for high surge current equipment
  • 2 color LED indicator for charging status
  • Fully enclosed plastic case
  • 2 years warranty
Wattage 30 30 30 30 30 30 30
Input Voltage 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC: 127~370VDC 90~264VAC, 127~370VDC
Output Current 0~4 0~3.99 0~3 0~2.09 0~1.60 0~1.04 0~3.00
Output Voltage 4.2 5.6 8.4 14.3 16.8 28.6 7.2
Output Voltage Options Single Single Single Single Single Single Single
DC output adjustment N/A N/A N/A N/A N/A N/A N/A
Dimensions 108 x 67 x 36 108 x 67 x 36 108 x 67 x 36 108 x 67 x 36 108 x 67 x 36 108 x 67 x 36 108 x 67 x 36
Working Temperature 0~+50°C
Safety Standards UL60950-1, CSA C22.2, TUV EN60950-1
EMC Standards EN55014-1, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
