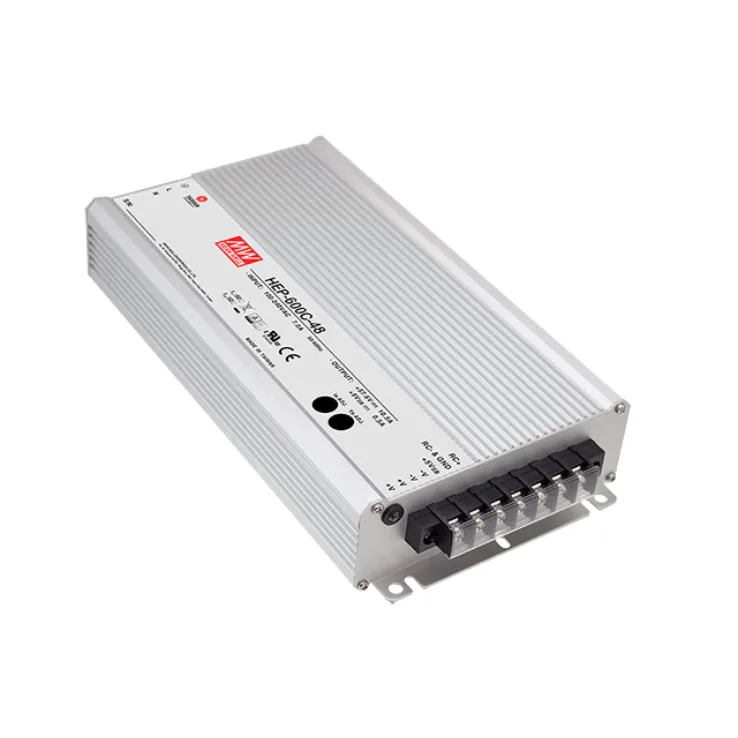

Mean Well HEP-600C Series Chargers 504–604.8W

Download Datasheet
Models:
  • HEP-600C-12
  • HEP-600C-24
  • HEP-600C-48
Manufacturer: Mean Well
Type: Chargers

HEP-600C Series Features:

Withstand 10G vibration test

Fanless design, cooling by free air convection

Protections: Short circuit/Over voltage/Over temperature

Other features:

  • Universal AC input (up to 305VAC) / Full range
  • 3 Stage charging
  • Built-in active PFC function
  • No load power consumption <0.5W at remote OFF
  • High efficiency up to 95.5%
  • -40~+70°C wide operating range
  • Aluminium case and filling with heat-conducted silicone
  • 3 Colour LED loading indicator
  • Operation altitude up to 5000 meters
  • 6 years warranty
Wattage 504 604.8 604.8
Input Voltage 90-264VAC 90-264VAC 90-264VAC
Output Current 35A 21A 10.5A
Output Voltage 12 24 48
Output Voltage Options Single Single Single
DC output adjustment 11.5-15.1V 23-30.2V 5.2-10.5V
Dimensions 280x 144x 48.5 280x 144x 48.5 280x 144x 48.5
Working Temperature -40~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22), radiation class A, conduction class B, EN61000-3-2,-3, Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
