MEAN WELL NBP-240 Series Chargers 205.2–243.2W

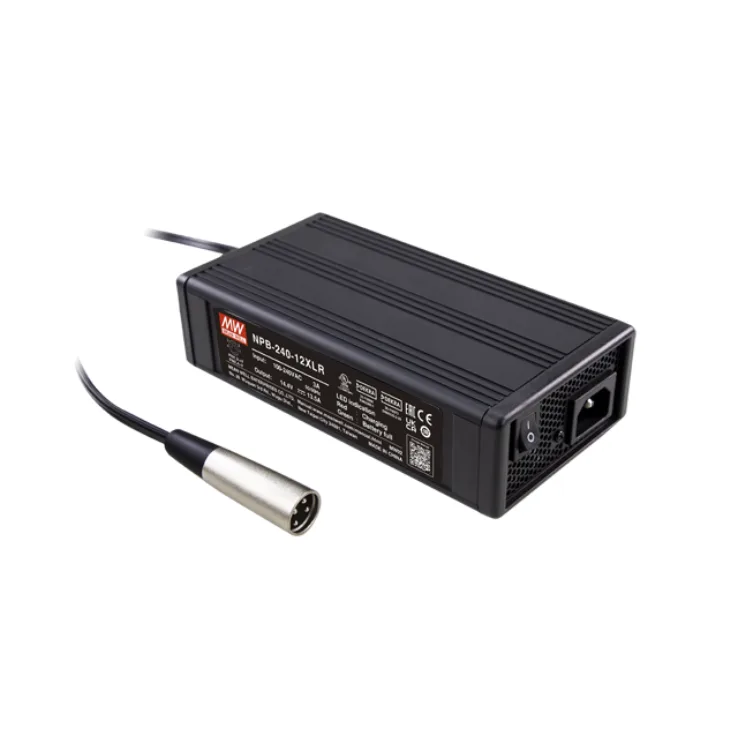

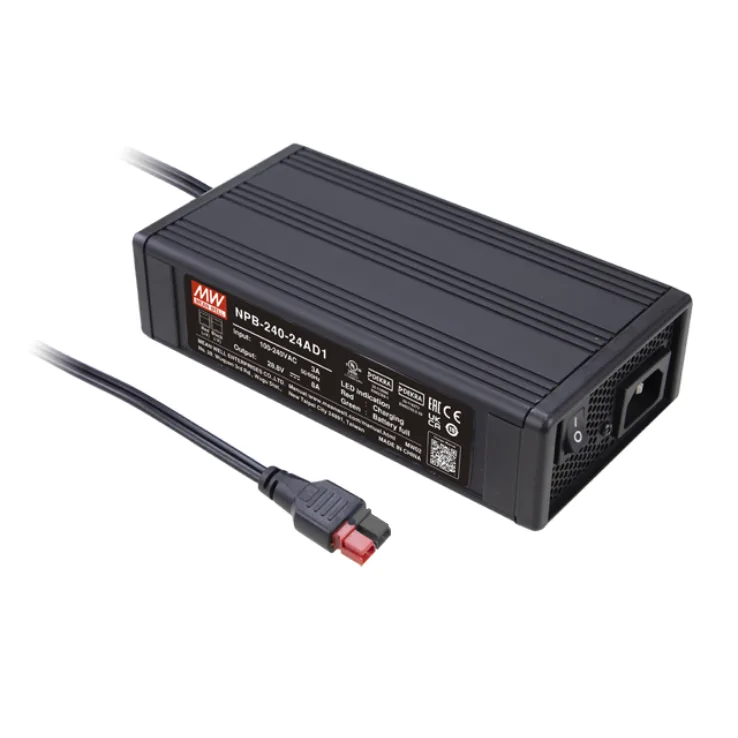

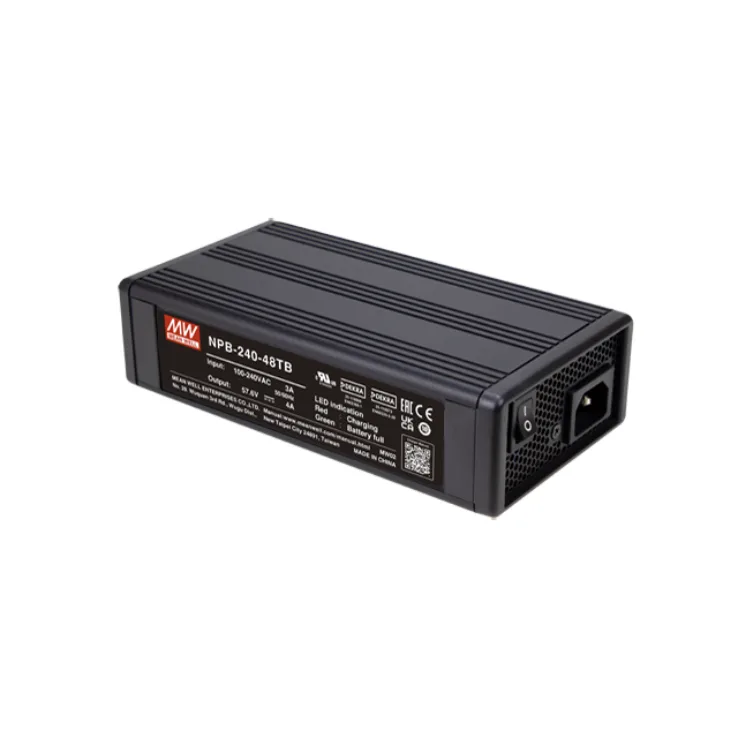

Models:	NPB-240-12XLR NPB-240-12AD1 NPB-240-12TB NPB-240-24XLR NPB-240-24AD1 NPB-240-24TB NPB-240-48XLR NPB-240-48AD1 NPB-240-48TB
Manufacturer:	MEAN WELL
Type:	Chargers

NBP-240 Series Features:

NPB-240 series is a 240W charger for compatible with lead-acid (Flooded, Gel, AGM) and li-ion (Lithium iron, lithium manganese) batteries.

Features:

* Charging voltage adjustable (10.5~15.2V, 21~30.4V, 42~60.8V)

*Charging current adjustable (50~100% rated current)

2 or 3 stage selectable by DIP S.W
No load power consumption <0.4W(AC S.W off)
-30~70°C wide operating temperature
Protections: Short circuit/ Over voltage/ Over temperature/ Battery reverse polarity protection
Comply with UL/EN62368-1 and EN60335-1/2-99
Front panel LED indicator for charging status
3 years warranty

Spec	NPB-240-12XLR	NPB-240-12AD1	NPB-240-12TB	NPB-240-24XLR	NPB-240-24AD1	NPB-240-24TB	NPB-240-48XLR	NPB-240-48AD1	NPB-240-48TB
Wattage	205.2	205.2	205.2	243.2	243.2	243.2	243.2	243.2	243.2
Input Voltage	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC	90~264VAC
Output Current	13.5	13.5	13.5	8	8	8	4	4	4
Output Voltage Options	10.5~15.2	10.5~15.2V	10.5~15.2	21~30.4	21~30.4	21~30.4	42~60.8	42~60.8	42~60.8
Dimensions	1809649mm	1809649mm	1809649mm	1809649mm	1809649mm	1809649mm	1809649mm	1809649mm	1809649mm
Working Temperature	-30~70°C
Safety Standards	CB IEC62368-1, IEC60335-1/2-29, Dekra BS EN/EN62368-1, BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
EMC Standards	BS EN/EN55032(CISPR32, BS EN/EN55014-1, BS EN/EN61000-3-2, BS EN/EN61000-3-3
