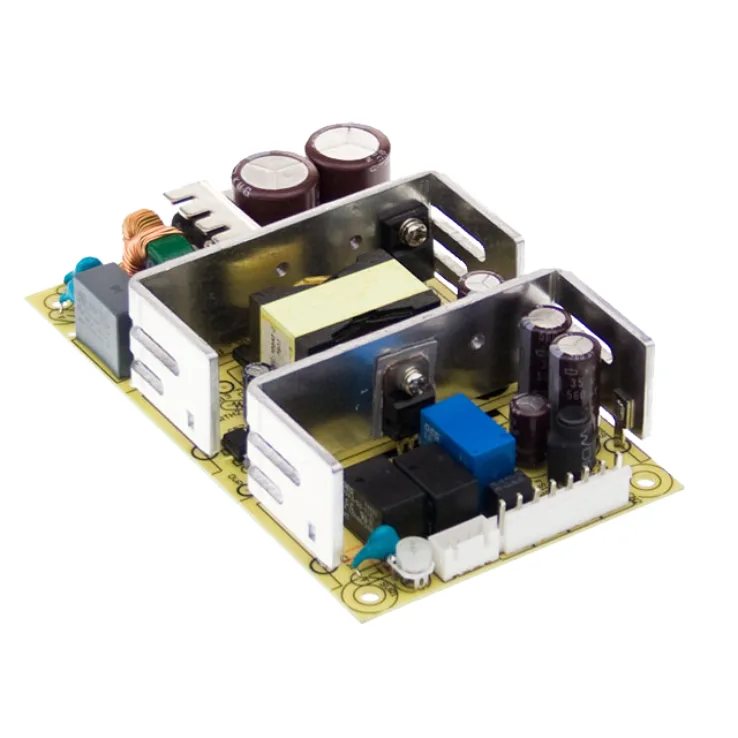

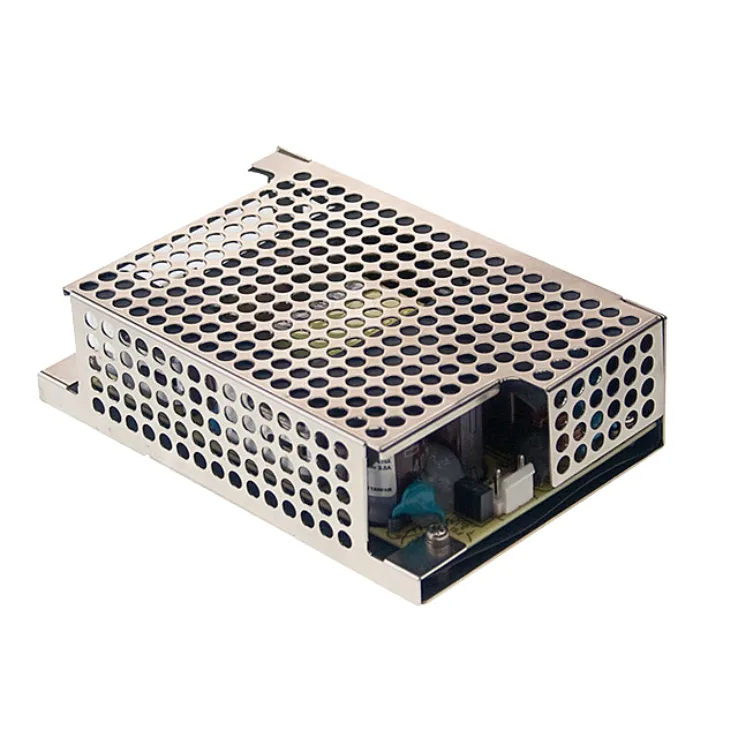

Mean Well PSC-100 Series Chargers 100W

Download Datasheet
Models:
  • PSC-100A
  • PSC-100AC/ST
  • PSC-100B
  • PSC-100BC/ST
Manufacturer: Mean Well
Type: Chargers

PSC-100 Series Features:

Din Rail Mounted

UPS Function

Protections: Short circuit / Overload / Over voltage

Other Features:

  • Universal AC input / Full range
  • 5”x3” compact size
  • Battery low protection / Battery reverse polarity protection by fuse
  • Relay contact signal for AC OK and Battery low
  • Cooling by free air convection
  • 2 years warranty
Wattage 100 100 100 100
Input Voltage 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC 90~264VAC; 127~370VDC
Output Current 0~7.0, 0~2.5 0~7.0, 0~2.5 0~3.50, 0~1.25 0~3.50, 0~1.25
Output Voltage 13.8 13.8 27.6 27.6
Output Voltage Options Dual Dual Dual Dual
DC output adjustment CH1, 13.8V:12~15V;27.6V:24~29V CH1, 13.8V:12~15V;27.6V:24~29V CH1, 13.8V:12~15V;27.6V:24~29V CH1, 13.8V:12~15V;27.6V:24~29V
Dimensions 127 x 76.2 x 31 127 x 76.2 x 31 127 x 76.2 x 31 127 x 76.2 x 31
Working Temperature -10~+60B0C -20~+60B0C (refer to output derating curve)
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
