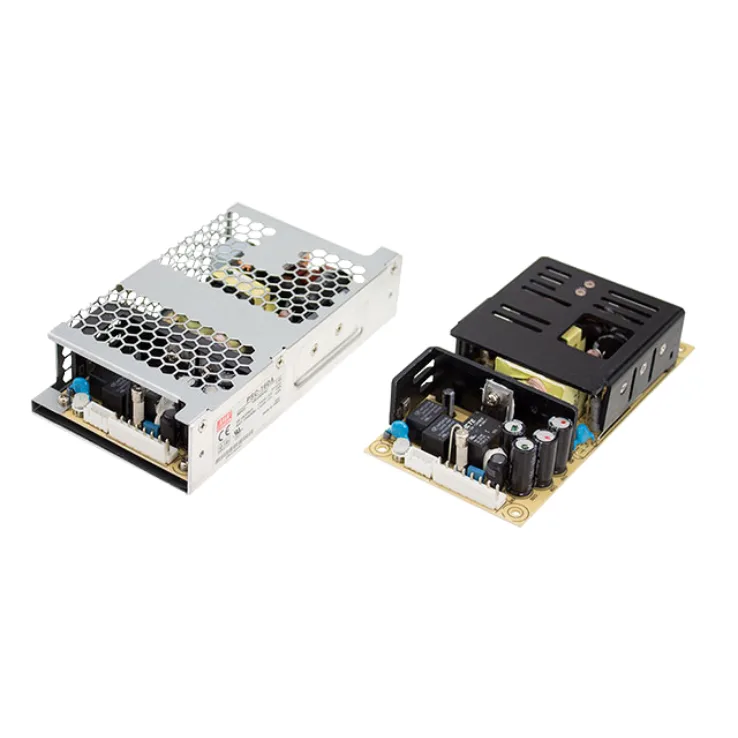

Mean Well PSC-160 Series Chargers 160W

Download Datasheet
Models:
  • PSC-160A
  • PSC-160B
  • PSC-160A-C
  • PSC-160B-C
Manufacturer: Mean Well
Type: Chargers

PSC-160 Series Features:

Universal AC input/ Full range

Built-in active PFC function

Battery low protection/ Battery polarity protection by fuse

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • 6"x3" compact size
  • Relay contact signal output for AC OK and Battery Low
  • Cooling by free air convection
  • 100% full load burn-in test
  • 2 years warranty
Wattage 160 160 160 160
Input Voltage 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC
Output Current CH1: 0~11.6A CH2: 4A CH1: 0~5.8A CH2: 2A CH1: 0~11.6A CH2: 4A CH1: 0~5.8A CH2: 2A
Output Voltage 13.8 27.6 27.6 27.6
Output Voltage Options Single Single Single Single
DC output adjustment CH1: 12~15V CH1: 24~29V CH1: 12~15V CH1: 24~29V
Dimensions 152.4x 76.2x 31 152.4x 76.2x 31 155.4*85*37mm 155.4*85*37mm
Working Temperature -20~+70°C
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55011 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
