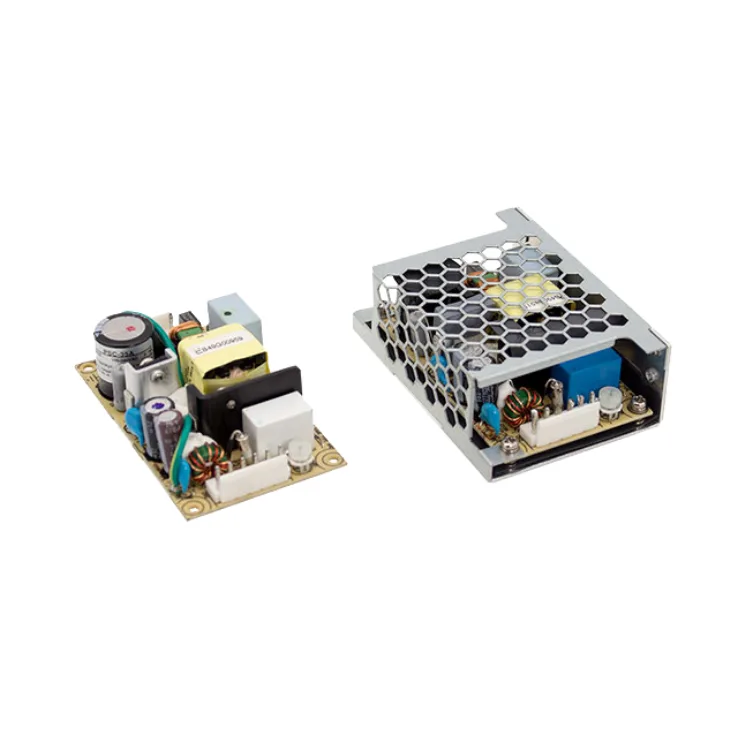

Mean Well PSC-35 Series Chargers 35.88W

Download Datasheet
Models:
  • PSC-35A
  • PSC-35B
  • PSC-35A-C
  • PSC-35B-C
Manufacturer: Mean Well
Type: Chargers

PSC-35 Series Features:

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage
Battery low protection / Battery polarity protection by fuse
Alarm signal for AC OK and Battery low
Cooling by free air convection
100% full load burn-in test
2 years warranty

Wattage 35.88 35.88 35.88 35.88
Input Voltage 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC 127~370VDC 90~264VAC, 127~370VDC
Output Current CH1: 1.7A, CH2: 0.9A CH1: 0.85A, CH2: 0.45A CH1: 1.7A, CH2: 0.9A CH1: 0.85A, CH2: 0.45A
Output Voltage 13.8 27.6v 13.8 27.6V
Output Voltage Options Single Single Single Single
Dimensions 84.6x 50.8x 24 84.6x 50.8x 24 86.4*59.6*30mm 86.4*59.6*30mm
Working Temperature -30~+70°C (refer to output derating curve)
Safety Standards UL60950-1, TUV EN60950-1 approved
EMC Standards Compliance to EN55022 (CISPR22) Class B, EN6100-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
